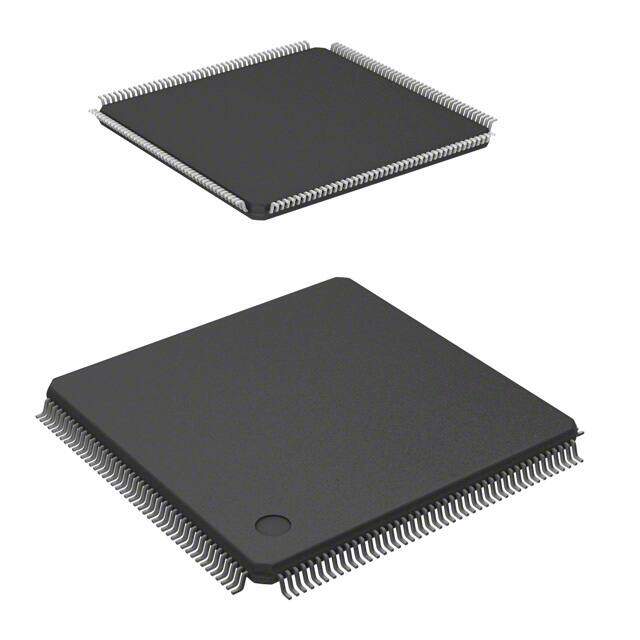

A54SX32A-1TQG176I image
Favorite
A54SX32A-1TQG176I image
Favorite

A54SX32A-1TQG176I

Microsemi Corporation
RoHS
/
Package 176-LQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description SX-A A54SX32A 176-LQFP MATTE TIN field programmable gate array 1.4mm 2.5V 278MHz 1.1ns
PDF
/
Inventory: 3926
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 24mm
Length 24mm
Height 1.4mm

Technical

Number of Registers 1980
Speed Grade 1
Number of Gates 48000
Number of Logic Elements/Cells 2880
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Turn On Delay Time 1.1 ns
Propagation Delay 1.1 ns
Number of I/O 147
Power Supplies 2.52.5/5V
Operating Supply Voltage 2.5V
Number of Outputs 147
Base Part Number A54SX32A
Time@Peak Reflow Temperature-Max (s) 40
Frequency 278MHz
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 2.25V~5.25V
Technology CMOS
Subcategory Field Programmable Gate Arrays
Additional Feature 32000 TYPICAL GATES AVAILABLE
Terminal Finish MATTE TIN
Number of Terminations 176
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Series SX-A
Published 2007
Packaging Tray
Operating Temperature -40°C~85°C TA

Physical

Number of Pins 176
Package / Case 176-LQFP
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
