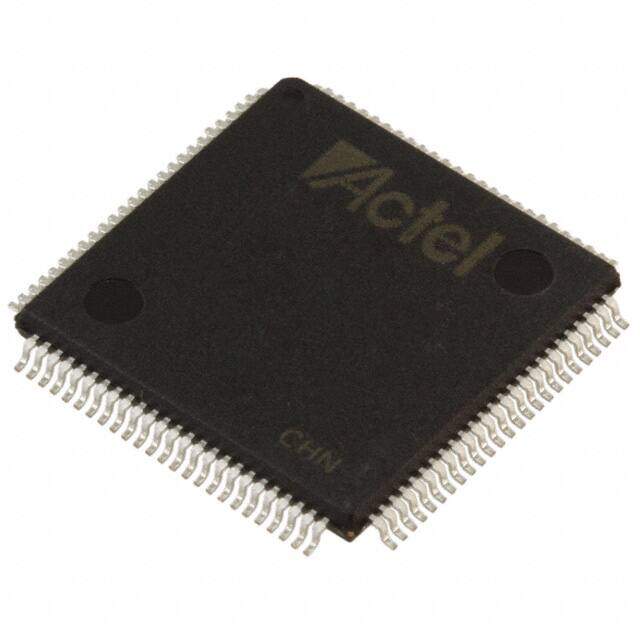

A54SX32A-1TQG100I image
Favorite
A54SX32A-1TQG100I image
Favorite

A54SX32A-1TQG100I

Microsemi Corporation
RoHS
RoHS RoHS compliant
Package 100-LQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description SX-A A54SX32A 100-LQFP Matte Tin (Sn) field programmable gate array 1.4mm 2.5V 278MHz 1.1ns
PDF
/
Inventory: 8194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100-LQFP
Number of Pins 100
Weight 657.000198mg

Technical

Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2007
Series SX-A
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
Terminal Finish Matte Tin (Sn)
Additional Feature 32000 TYPICAL GATES AVAILABLE
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 2.25V~5.25V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Frequency 278MHz
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number A54SX32A
Number of Outputs 81
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/5V
Number of I/O 81
Propagation Delay 1.1 ns
Turn On Delay Time 1.1 ns
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 2880
Number of Gates 48000
Speed Grade 1
Number of Registers 1980

Dimensions

Height 1.4mm
Length 14mm
Width 14mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
