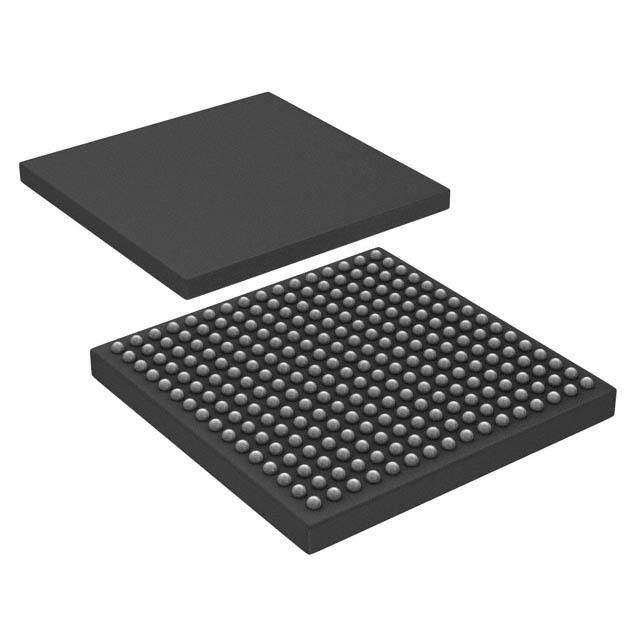

A2F500M3G-1FG256I
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
FBGA Tin/Lead (Sn/Pb) EBI/EMI Ethernet I2C SPI UART USART FIELD PROGRAMMABLE GATE ARRAY field programmable gate array 1.5V 100MHz 64kB 100C
PDF
/
Buying Options
Total Price: USD $73.4
Unit Price: USD $73.39795
≥1 USD $73.39795
≥10 USD $60.2243
≥100 USD $58.34235
≥500 USD $56.4604
≥1000 USD $54.57845
Inventory: 2275
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Number of Registers 11520
Speed Grade 1
Number of Logic Blocks (LABs) 24
Number of Gates 500000
Core Architecture ARM
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Frequency (Max) 120MHz
Peripherals DMA, POR, WDT
RAM Size 64kB
Number of I/O 117
Interface EBI/EMI, Ethernet, I2C, SPI, UART, USART
Temperature Grade INDUSTRIAL
Operating Supply Voltage 1.5V
Number of Outputs 66
Time@Peak Reflow Temperature-Max (s) 20
Frequency 100MHz
Supply Voltage 1.5V
Peak Reflow Temperature (Cel) 225
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 256
Moisture Sensitivity Level (MSL) 3
Part Status Active
JESD-609 Code e0
Published 2015
Physical
Number of Pins 256
Surface Mount YES
Package / Case FBGA
