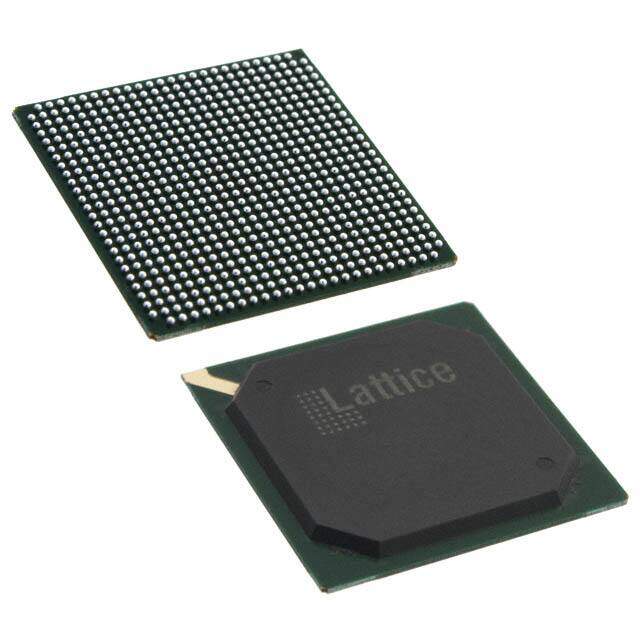

LFXP2-40E-7FN672C
RoHS
RoHS compliant
RoHS compliantPackage 672-BBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
XP2 LFXP2-40 672-BBGA Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) field programmable gate array 2.6mm 1.2V 435MHz 0.304ns
PDF
/
Buying Options
Total Price: USD $30.41
Unit Price: USD $30.41425
≥1 USD $30.41425
≥10 USD $24.95555
≥100 USD $24.1756
≥500 USD $23.39565
≥1000 USD $22.6157
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 27mm
Length 27mm
Height Seated (Max) 2.6mm
Technical
Combinatorial Delay of a CLB-Max 0.304 ns
Number of LABs/CLBs 5000
Total RAM Bits 906240
Number of Logic Elements/Cells 40000
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 435MHz
RAM Size 110.6kB
Number of I/O 540
Memory Size 121kB
Power Supplies 1.21.2/3.33.3V
Operating Supply Voltage 1.2V
Qualification Status Not Qualified
Number of Outputs 540
Pin Count 672
Base Part Number LFXP2-40
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 1mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 250
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.14V~1.26V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
ECCN Code EAR99
Number of Terminations 672
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series XP2
Published 2013
Packaging Tray
Operating Temperature 0°C~85°C TJ
Physical
Number of Pins 672
Package / Case 672-BBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
