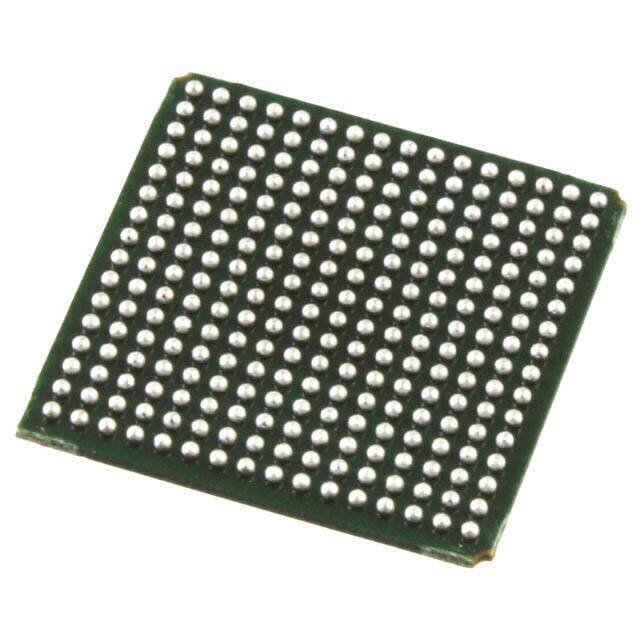

LFX125EB-03FN256C image
Favorite
LFX125EB-03FN256C image
Favorite
RoHS
/
Package 256-BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description ispXPGA? LFX125 256-BGA Tin/Silver/Copper (Sn/Ag/Cu) field programmable gate array 2.1mm 2.5V 320MHz 1.07ns
PDF
/
Inventory: 3017
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 17mm
Length 17mm
Height Seated (Max) 2.1mm

Technical

Number of CLBs 484
Combinatorial Delay of a CLB-Max 1.07 ns
Number of Gates 139000
Total RAM Bits 94208
Number of Logic Elements/Cells 1936
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 320MHz
RAM Size 11.5kB
Number of I/O 160
Memory Size 15.3kB
Power Supplies 2.5/3.3V
Operating Supply Voltage 2.5V
Number of Outputs 160
Pin Count 256
Base Part Number LFX125
Terminal Pitch 1mm
Supply Voltage 2.5V
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.3V~3.6V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Additional Feature ALSO OPERATES WITH 3.3V SUPPLY
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 256
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series ispXPGA?
Published 2000
Packaging Tray
Operating Temperature 0°C~85°C TJ

Physical

Number of Pins 256
Package / Case 256-BGA
Mounting Type Surface Mount
Mount Surface Mount
