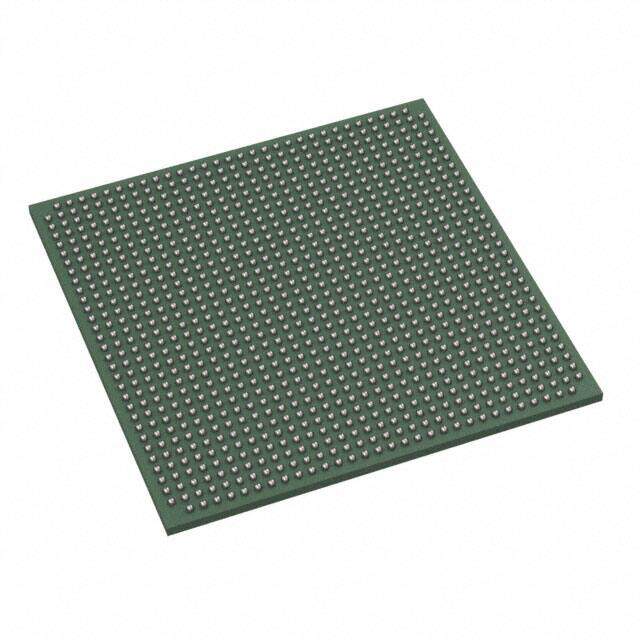

LFSCM3GA40EP1-7FF1020C image
Favorite
LFSCM3GA40EP1-7FF1020C image
Favorite

LFSCM3GA40EP1-7FF1020C

Lattice Semiconductor Corporation
RoHS
/
Package 1020-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description SCM LFSCM3GA40 1020-BBGA FCBGA Tin/Lead (Sn85Pb15) field programmable gate array 3.82mm 1.2V 700MHz 497.5kB
PDF
/
Inventory: 4316
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Base Part Number LFSCM3GA40
Number of Outputs 562
Qualification Status Not Qualified
Operating Supply Voltage 1.2V
Power Supplies 1.21.2/3.32.5V
Number of I/O 562
RAM Size 497.5kB
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 40000
Total RAM Bits 4075520
Max Frequency 700MHz
Number of LABs/CLBs 10000
Number of CLBs 216
Number of Logic Cells 40400
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 1mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 225
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 0.95V~1.26V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish Tin/Lead (Sn85Pb15)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e0
Series SCM
Published 2008
Packaging Tray
Operating Temperature 0°C~85°C TJ

Dimensions

Height Seated (Max) 3.82mm
Length 33mm
Width 33mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Lead Free

Physical

Number of Pins 1020
Package / Case 1020-BBGA, FCBGA
Mounting Type Surface Mount
Mount Surface Mount
