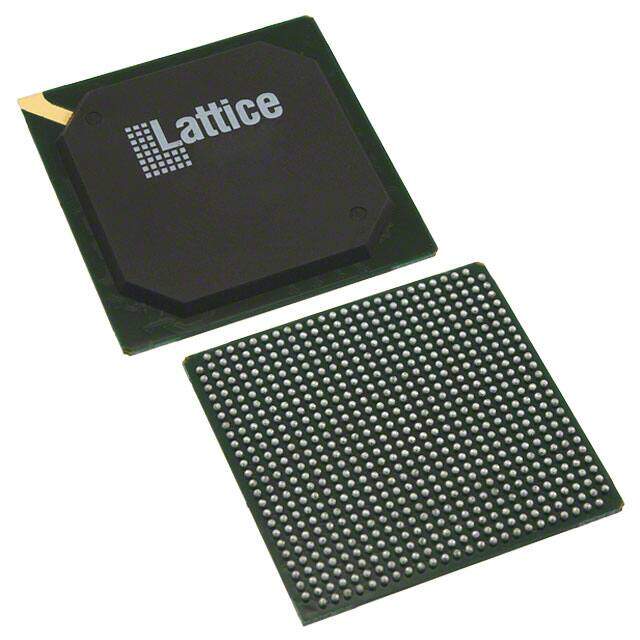

LFE3-150EA-9FN672I
RoHS
RoHS compliant
RoHS compliantPackage 672-BBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
ECP3 LFE3-150 672-BBGA Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) field programmable gate array 2.6mm 1.2V 500MHz 0.252ns
PDF
/
Inventory: 4715
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 672-BBGA
Number of Pins 672
Technical
Operating Temperature -40°C~100°C TJ
Packaging Tray
Published 2012
Series ECP3
JESD-609 Code e1
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 672
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Voltage - Supply 1.14V~1.26V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 250
Supply Voltage 1.2V
Terminal Pitch 1mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number LFE3-150
Pin Count 672
Number of Outputs 380
Qualification Status Not Qualified
Operating Supply Voltage 1.2V
Memory Size 894.1kB
Operating Supply Current 370.9mA
Number of I/O 380
RAM Size 856.3kB
Clock Frequency 500MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 149000
Total RAM Bits 7014400
Number of LABs/CLBs 18625
Combinatorial Delay of a CLB-Max 0.252 ns
Dimensions
Height Seated (Max) 2.6mm
Length 27mm
Width 27mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
