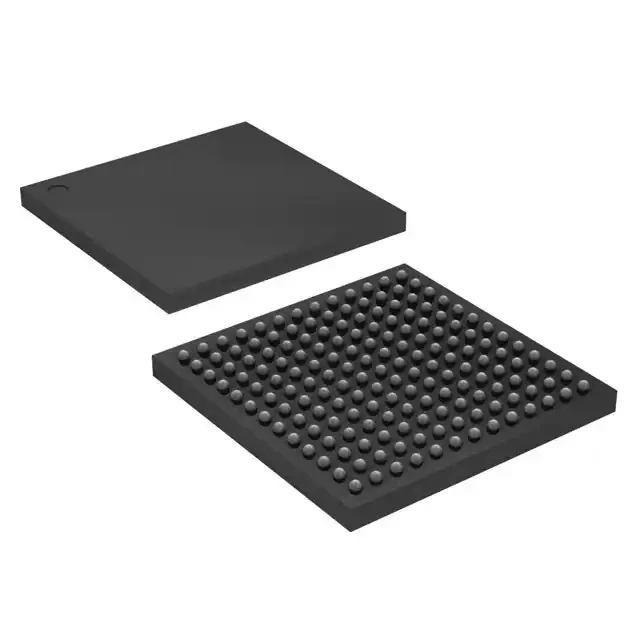

EP4CGX15BF14C8
RoHS
/
Package 169-LBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Cyclone? IV GX EP4CGX15 169-LBGA TIN LEAD field programmable gate array 1.55mm 1.21.2/3.32.5V 0C~85C TJ
PDF
/
Buying Options
Total Price: USD $29.53
Unit Price: USD $29.53265
≥1 USD $29.53265
≥10 USD $24.2326
≥100 USD $23.47545
≥500 USD $22.71735
≥1000 USD $21.9602
Inventory: 1224
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 14mm
Length 14mm
Height Seated (Max) 1.55mm
Technical
Number of CLBs 900
Number of LABs/CLBs 900
Total RAM Bits 552960
Number of Logic Elements/Cells 14400
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Inputs 72
Number of I/O 72
Power Supplies 1.21.2/3.32.5V
Qualification Status Not Qualified
Number of Outputs 72
JESD-30 Code S-PBGA-B169
Base Part Number EP4CGX15
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 235
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.16V~1.24V
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish TIN LEAD
Number of Terminations 169
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e0
Series Cyclone? IV GX
Packaging Tray
Operating Temperature 0°C~85°C TJ
Physical
Surface Mount YES
Package / Case 169-LBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
