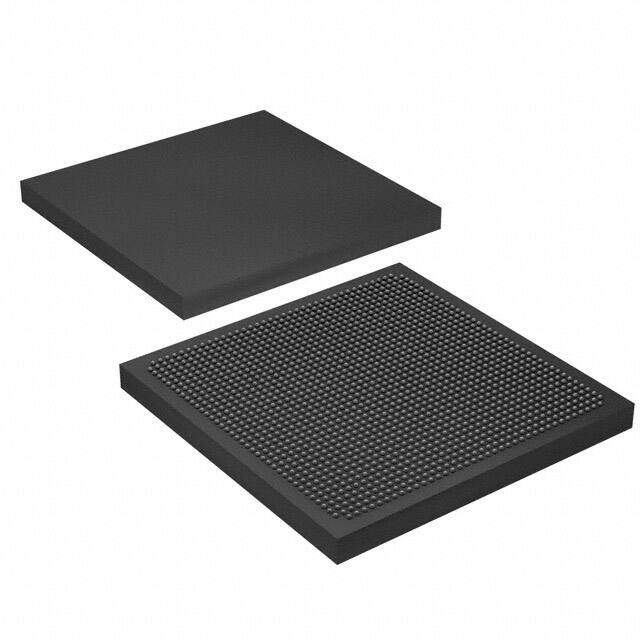

5SGXEA9K2H40I2 image
Favorite
5SGXEA9K2H40I2 image
Favorite

5SGXEA9K2H40I2

Intel
RoHS
RoHS RoHS compliant
Package 1517-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description 31700CLBS Stratix? V GX 5SGXEA9 1517-BBGA FCBGA field programmable gate array 3.9mm 0.91.52.52.5/31.2/3V -40C~100C TJ
PDF
/
Inventory: 4667
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Number of Inputs 696
Organization 31700 CLBS
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 840000
Total RAM Bits 53248000
Number of LABs/CLBs 317000
Number of I/O 696
Power Supplies 0.91.52.52.5/31.2/3V
Qualification Status Not Qualified
Number of Outputs 696
JESD-30 Code S-PBGA-B1517
Base Part Number 5SGXEA9
Terminal Pitch 1mm
Supply Voltage 0.9V
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 0.87V~0.93V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Series Stratix? V GX
Packaging Tray
Operating Temperature -40°C~100°C TJ

Dimensions

Height Seated (Max) 3.9mm
Length 45mm
Width 45mm

Compliance

RoHS Status RoHS Compliant

Physical

Surface Mount YES
Package / Case 1517-BBGA, FCBGA
Mounting Type Surface Mount
