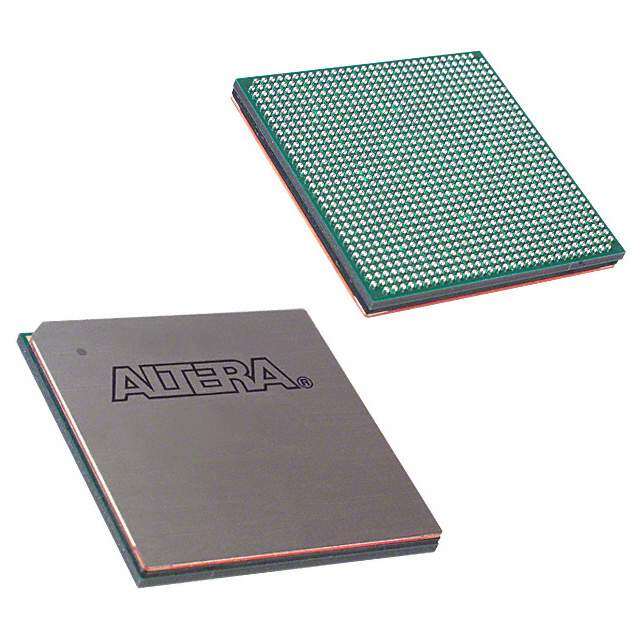

EPXA10F1020C1
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL OTHER 2000 RoHS Compliant FPGA 85C 266MHz 1.71V 3.5mm
PDF
/
Buying Options
Total Price: USD $1134.87
Unit Price: USD $1134.8656
≥1 USD $1134.8656
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 33mm
Length 33mm
Height Seated (Max) 3.5mm
Technical
Output Function MACROCELL
Programmable Logic Type LOADABLE PLD
Organization 0 DEDICATED INPUTS, 711 I/O
Number of I/O 711
Interface EBI/EMI, UART, USART
Supply Voltage-Min (Vsup) 1.71V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 1.89V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B1020
Pin Count 1020
Time@Peak Reflow Temperature-Max (s) 30
Frequency 266MHz
Terminal Pitch 1mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN LEAD
ECCN Code 3A001.A.7.A
Number of Terminations 1020
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 2000
Physical
Package / Case FBGA
Mount Surface Mount
