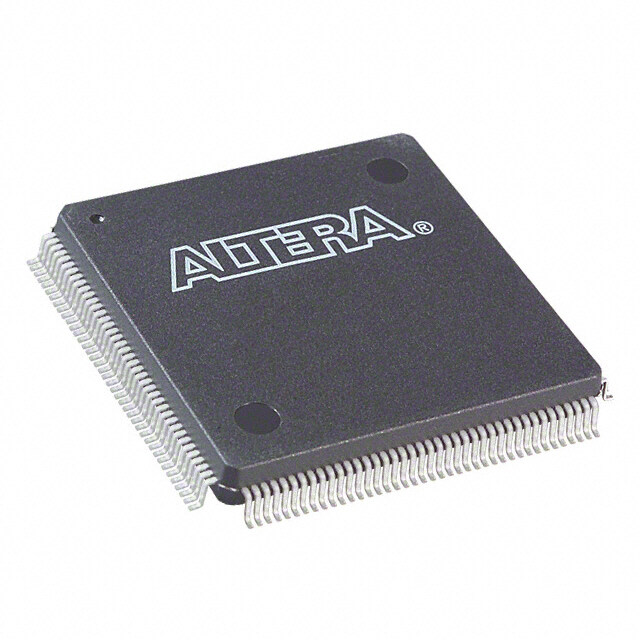

EPF8820AQC160-2
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 1994 FPGA 70C 10mA 125MHz 5.25V
PDF
/
Buying Options
Total Price: USD $13.41
Unit Price: USD $13.4102
≥1 USD $13.4102
≥10 USD $11.00385
≥100 USD $10.65995
≥500 USD $10.31605
≥1000 USD $9.97215
Inventory: 1129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 4.07mm
Technical
Number of Dedicated Inputs 4
Number of Logic Cells 672
Number of Registers 820
Output Function REGISTERED
Speed Grade 2
Number of Logic Blocks (LABs) 84
Number of Gates 8000
Number of Logic Elements/Cells 672
Programmable Logic Type LOADABLE PLD
Number of I/O 120
Operating Supply Current 10mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Number of Outputs 116
Pin Count 160
Time@Peak Reflow Temperature-Max (s) 30
Frequency 125MHz
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 1994
Physical
Number of Pins 160
Package / Case PQFP
Mount Surface Mount
