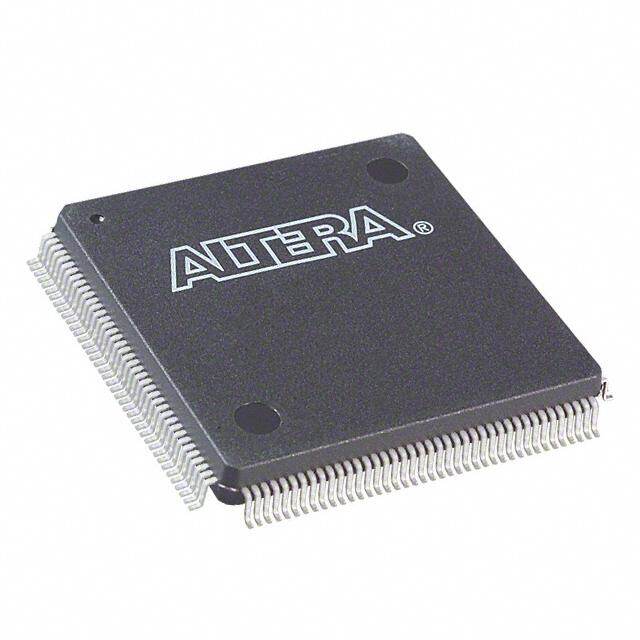

EPF8636AQC160-3
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 1B 125MHz
PDF
/
Buying Options
Total Price: USD $38.71
Unit Price: USD $38.70965
≥1 USD $38.70965
≥10 USD $31.76135
≥100 USD $30.76955
≥500 USD $29.7768
≥1000 USD $28.78405
Inventory: 2205
Minimum: 1
-
+
Technical Details
Technical
ECCN Code EAR99
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 1994
Number of Dedicated Inputs 4
Number of Logic Cells 504
Output Function REGISTERED
Number of Logic Blocks (LABs) 63
Number of Gates 6000
Number of Logic Elements/Cells 504
Programmable Logic Type LOADABLE PLD
RAM Size 1B
Number of I/O 118
Operating Supply Current 10mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Number of Outputs 114
Pin Count 160
Time@Peak Reflow Temperature-Max (s) 30
Frequency 125MHz
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
Physical
Number of Pins 160
Package / Case PQFP
Mount Surface Mount
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.07mm
