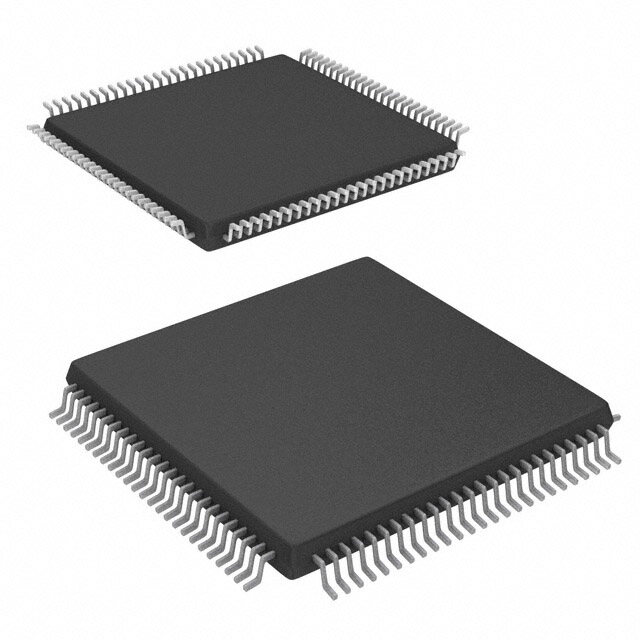

EPF8452ATC100-3N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 1994 FPGA 70C 10mA 125MHz 5.25V
PDF
/
Inventory: 5741
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 100
Technical
Published 1994
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 3
Number of Terminations 100
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Terminal Pitch 0.5mm
Frequency 125MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 100
Number of Outputs 68
Qualification Status Not Qualified
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Operating Supply Current 10mA
Number of I/O 78
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 336
Number of Gates 4000
Number of Logic Blocks (LABs) 42
Speed Grade 3
Output Function REGISTERED
Number of Registers 452
Number of Logic Cells 336
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.27mm
Length 14mm
Width 14mm
Compliance
RoHS Status RoHS Compliant
