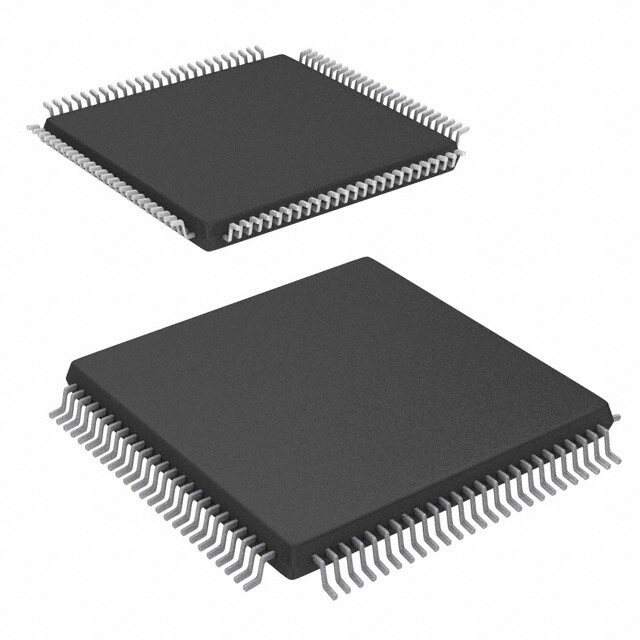

EPF8282ATC100-3N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 1994 FPGA 70C 10mA 125MHz 5.25V
PDF
/
Inventory: 9475
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 14mm
Length 14mm
Height Seated (Max) 1.27mm
Technical
Number of Dedicated Inputs 4
Number of Registers 282
Output Function REGISTERED
Speed Grade 3
Number of Logic Blocks (LABs) 26
Number of Gates 2500
Number of Logic Elements/Cells 208
Programmable Logic Type LOADABLE PLD
Number of I/O 78
Operating Supply Current 10mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Pin Count 100
Time@Peak Reflow Temperature-Max (s) 40
Frequency 125MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish MATTE TIN (472) OVER COPPER
ECCN Code EAR99
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e3
Published 1994
Physical
Number of Pins 100
Package / Case TQFP
Mount Surface Mount
