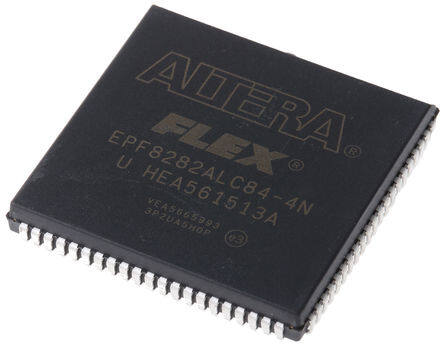

EPF8282ALC84-4N
RoHS
/
Package PLCC
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 1994 FPGA 70C 10mA 60MHz 5.25V
PDF
/
Buying Options
Total Price: USD $9.68
Unit Price: USD $9.67765
≥1 USD $9.67765
≥10 USD $7.94105
≥100 USD $7.69215
≥500 USD $7.4442
≥1000 USD $7.19625
Inventory: 6605
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Surface Mount
Package / Case PLCC
Number of Pins 84
Technical
Published 1994
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 84
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Peak Reflow Temperature (Cel) 245
Supply Voltage 5V
Terminal Pitch 1.27mm
Frequency 60MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 84
Number of Outputs 68
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Operating Supply Current 10mA
Number of I/O 68
Frequency (Max) 125MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 208
Number of Gates 2500
Number of Logic Blocks (LABs) 26
Speed Grade 4
Output Function REGISTERED
Number of Registers 282
Number of Logic Cells 208
Number of Dedicated Inputs 4
Dimensions
Height 3.81mm
Length 29.31mm
Width 29.31mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
