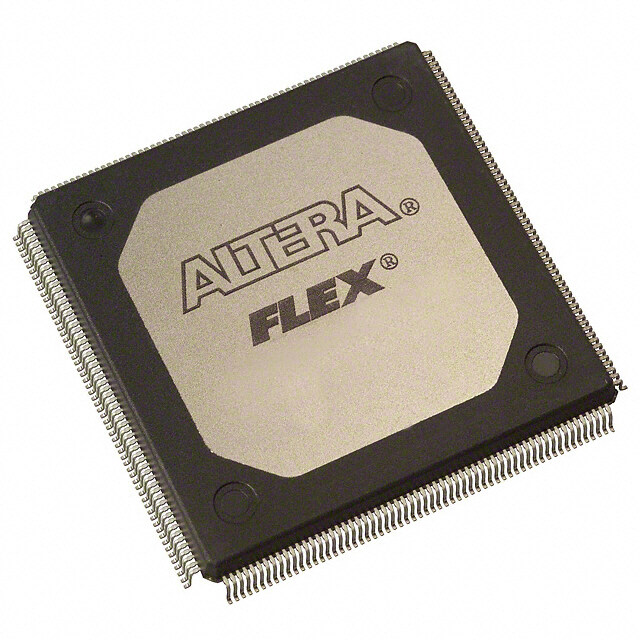

EPF81500ARC240-4
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 1994 FPGA 70C 1.9ns 357MHz 4.75V
PDF
/
Buying Options
Total Price: USD $114.65
Unit Price: USD $114.64505
≥1 USD $114.64505
≥10 USD $110.8232
≥100 USD $99.3586
Inventory: 988
Minimum: 1
-
+
Technical Details
Technical
Number of I/O 181
Clock Frequency 357MHz
Propagation Delay 1.9 ns
Number of Inputs 181
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 1296
Number of Gates 16000
Number of Logic Blocks (LABs) 162
Output Function REGISTERED
Number of Dedicated Inputs 4
Supply Voltage-Min (Vsup) 4.75V
Temperature Grade COMMERCIAL
Power Supplies 3.3/55V
Supply Voltage-Max (Vsup) 5.25V
Qualification Status Not Qualified
Number of Outputs 177
JESD-30 Code S-PQFP-G240
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A991
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 1994
Dimensions
Height Seated (Max) 4.1mm
Length 32mm
Width 32mm
Compliance
RoHS Status RoHS Compliant
Physical
Mount Surface Mount
