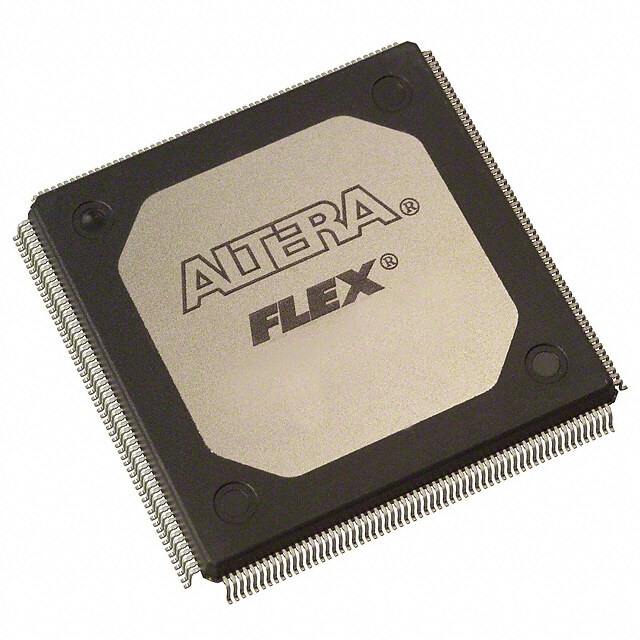

EPF81500ARC240-3
RoHS
/
Package /
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 1994 FPGA 70C 385MHz 4.75V 4.1mm
PDF
/
Buying Options
Total Price: USD $165.53
Unit Price: USD $165.52705
≥1 USD $165.52705
≥10 USD $148.4033
Inventory: 1102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 32mm
Length 32mm
Height Seated (Max) 4.1mm
Technical
Number of Dedicated Inputs 4
Output Function REGISTERED
Number of Logic Blocks (LABs) 162
Number of Gates 16000
Number of Logic Elements/Cells 1296
Programmable Logic Type LOADABLE PLD
Number of Inputs 181
Clock Frequency 385MHz
Number of I/O 181
Supply Voltage-Min (Vsup) 4.75V
Temperature Grade COMMERCIAL
Power Supplies 3.3/55V
Supply Voltage-Max (Vsup) 5.25V
Qualification Status Not Qualified
Number of Outputs 177
JESD-30 Code S-PQFP-G240
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A991
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Published 1994
Physical
Mount Surface Mount
