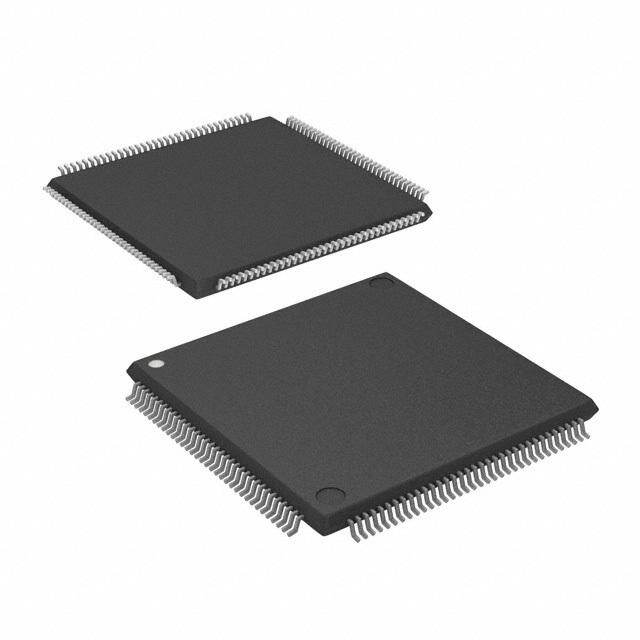

EPF6016TI144-2
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MACROCELL CMOS 1996 FPGA 100C 5mA 125MHz 5.5V
PDF
/
Buying Options
Total Price: USD $111.61
Unit Price: USD $111.612805
≥1 USD $111.612805
≥10 USD $105.295106
≥100 USD $99.335005
≥500 USD $93.712268
≥1000 USD $88.407797
Inventory: 1592
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Number of Logic Blocks (LABs) 132
Number of Gates 16000
Number of Logic Elements/Cells 1320
Programmable Logic Type LOADABLE PLD
Number of I/O 117
Operating Supply Current 5mA
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Operating Supply Voltage 5V
Qualification Status Not Qualified
Number of Outputs 117
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Frequency 125MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Additional Feature ALSO CONFIGURABLE WITH 5V VCC
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A991
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 1996
Packaging Bulk
Physical
Number of Pins 144
Package / Case TQFP
Mount Surface Mount
