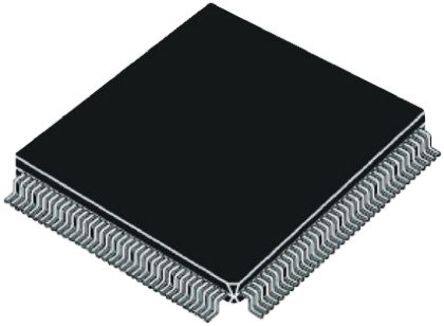

EPF6016TC144-3N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free MACROCELL CMOS OTHER FPGA 85C 5mA 60MHz 5.25V
PDF
/
Buying Options
Total Price: USD $159.71
Unit Price: USD $159.7102
≥1 USD $159.7102
≥10 USD $143.18875
Inventory: 1109
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 20mm
Length 20mm
Height 1.4mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Speed Grade 3
Number of Logic Blocks (LABs) 132
Number of Gates 16000
Number of Logic Elements/Cells 1320
Programmable Logic Type LOADABLE PLD
Frequency (Max) 125MHz
Number of I/O 117
Operating Supply Current 5mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade OTHER
Operating Supply Voltage 5V
Number of Outputs 117
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 40
Frequency 60MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 1996
Physical
Number of Pins 144
Package / Case TQFP
Mount Surface Mount
