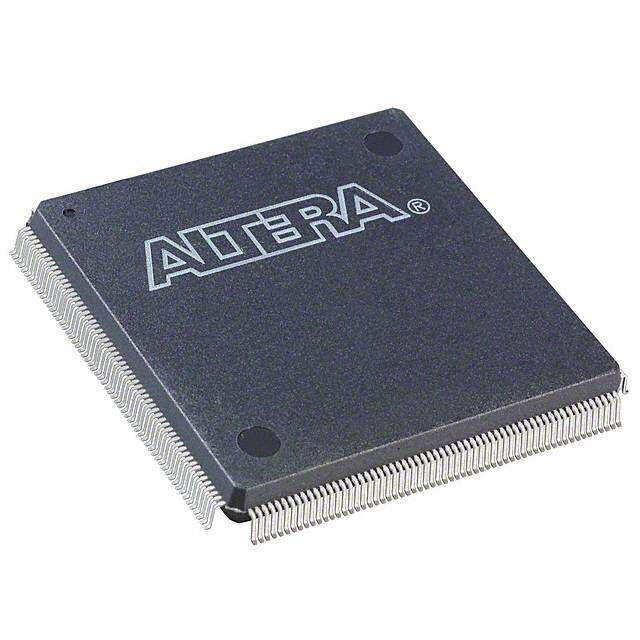

EPF6016QC240-3N image
Favorite
EPF6016QC240-3N image
Favorite

EPF6016QC240-3N

Altera
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description Lead Free MACROCELL OTHER 1996 FPGA 85C 5mA 125MHz 5.25V
PDF
/
Buying Options
Total Price: USD $134.24
Unit Price: USD $134.23975
≥1 USD $134.23975
≥10 USD $129.76525
≥100 USD $116.3408
Inventory: 24
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 4.1mm

Technical

Number of Dedicated Inputs 4
Output Function MACROCELL
Speed Grade 3
Number of Logic Blocks (LABs) 132
Number of Gates 16000
Number of Logic Elements/Cells 1320
Programmable Logic Type LOADABLE PLD
Number of I/O 199
Operating Supply Current 5mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade OTHER
Operating Supply Voltage 5V
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 40
Frequency 125MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position QUAD
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish MATTE TIN (472) OVER COPPER
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 1996

Physical

Number of Pins 240
Package / Case PQFP
Mount Surface Mount
