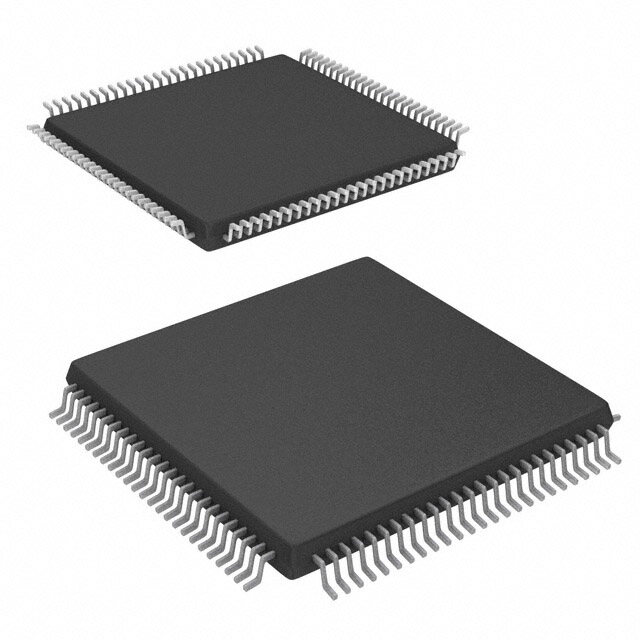

EPF6016ATI100-2N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MACROCELL 1996 RoHS Compliant GULL WING FPGA 100C 5mA 166.67MHz 3.6V
PDF
/
Inventory: 7282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 14mm
Length 14mm
Technical
Number of Dedicated Inputs 4
Output Function MACROCELL
Speed Grade 2
Number of Logic Blocks (LABs) 132
Number of Gates 16000
Number of Logic Elements/Cells 1320
Programmable Logic Type LOADABLE PLD
Number of I/O 81
Operating Supply Current 5mA
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 100
Time@Peak Reflow Temperature-Max (s) 40
Frequency 166.67MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Additional Feature ALSO CONFIGURABLE WITH 5V VCC
Min Operating Temperature -40°C
Max Operating Temperature 100°C
ECCN Code EAR99
Number of Terminations 100
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Published 1996
Physical
Number of Pins 100
Package / Case TQFP
Mount Surface Mount
