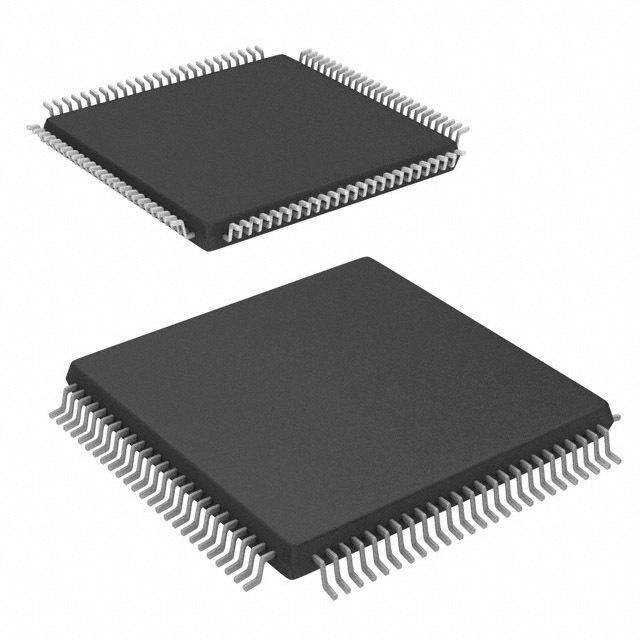

EPF6016ATI100-2
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MACROCELL CMOS 1996 FPGA 100C 5mA 166.67MHz 3.6V
PDF
/
Buying Options
Total Price: USD $48.24
Unit Price: USD $48.2416
≥1 USD $48.2416
Inventory: 55
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 100
Technical
Packaging Bulk
Published 1996
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 100
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Additional Feature ALSO CONFIGURABLE WITH 5V VCC
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 235
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 166.67MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 100
Number of Outputs 81
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Operating Supply Current 5mA
Number of I/O 81
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 1320
Number of Gates 16000
Number of Logic Blocks (LABs) 132
Speed Grade 2
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Length 14mm
Width 14mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
