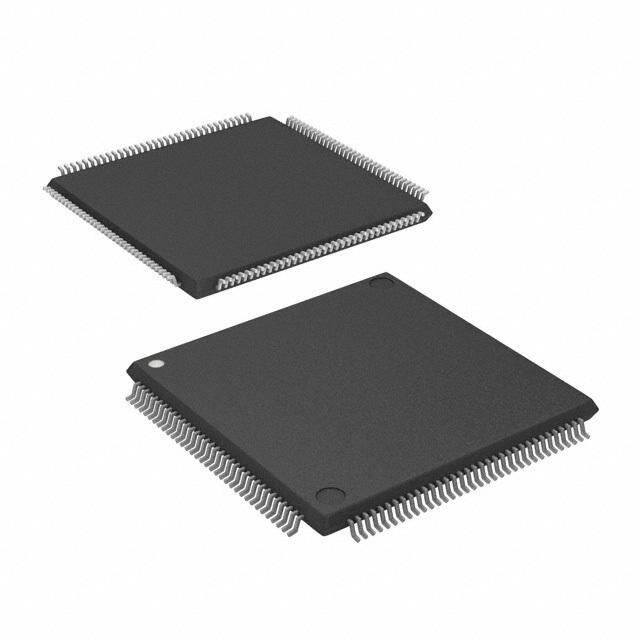

EPF6016ATC144-1N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free MACROCELL CMOS OTHER FPGA 85C 5mA 200MHz 3.6V
PDF
/
Buying Options
Total Price: USD $13.55
Unit Price: USD $13.552
≥1 USD $13.552
Inventory: 98
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 144
Technical
Published 1996
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
ECCN Code EAR99
Terminal Finish MATTE TIN (472) OVER COPPER
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 200MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 144
Number of Outputs 117
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Temperature Grade OTHER
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Operating Supply Current 5mA
Number of I/O 117
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 1320
Number of Gates 16000
Number of Logic Blocks (LABs) 132
Speed Grade 1
Output Function MACROCELL
Number of Dedicated Inputs 4
Dimensions
Length 20mm
Width 20mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
