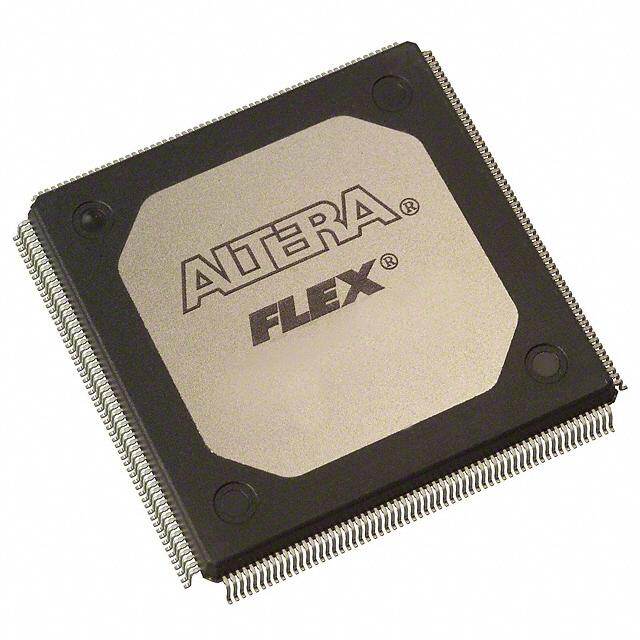

EPF10K50VRC240-4N
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 2.5kB 0.6ns
PDF
/
Buying Options
Total Price: USD $1073.91
Unit Price: USD $1073.91325
≥1 USD $1073.91325
Inventory: 100
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case QFP
Number of Pins 240
Technical
Published 2000
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 240
ECCN Code 3A991
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 125MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 240
Number of Outputs 189
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Memory Size 2.5kB
Operating Supply Current 10mA
Number of I/O 189
RAM Size 2.5kB
Propagation Delay 0.6 ns
Frequency (Max) 125MHz
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 2880
Number of Gates 116000
Number of Logic Blocks (LABs) 360
Speed Grade 4
Output Function REGISTERED
Number of Dedicated Inputs 4
Dimensions
Length 32mm
Width 32mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
