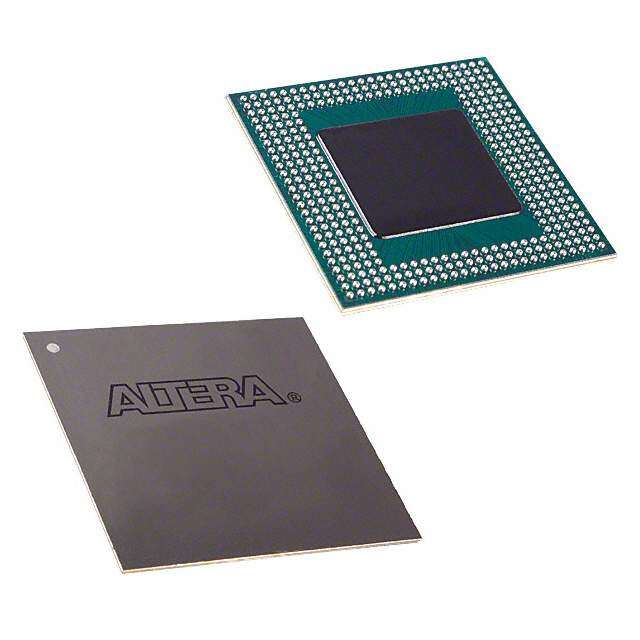

EPF10K50VBC356-4
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 2.5kB 0.6ns
PDF
/
Buying Options
Total Price: USD $41.95
Unit Price: USD $41.94915
≥1 USD $41.94915
≥10 USD $34.4204
≥100 USD $33.34405
≥500 USD $32.26865
≥1000 USD $31.19325
Inventory: 1602
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 356
Technical
Packaging Bulk
Published 2000
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 356
ECCN Code 3A991
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Frequency 125MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 356
Number of Outputs 274
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Memory Size 2.5kB
Operating Supply Current 10mA
Number of I/O 274
RAM Size 2.5kB
Propagation Delay 0.6 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 2880
Number of Gates 116000
Number of Logic Blocks (LABs) 360
Output Function REGISTERED
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.63mm
Length 35mm
Width 35mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
