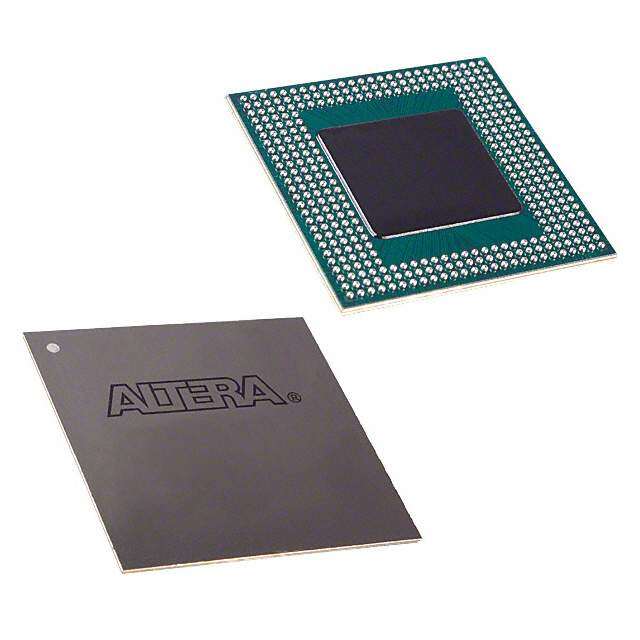

EPF10K50VBC356-3N
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 2.5kB 0.5ns
PDF
/
Inventory: 4948
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 356
Technical
Published 2000
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 356
ECCN Code 3A991
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Frequency 125MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 356
Number of Outputs 274
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Memory Size 2.5kB
Operating Supply Current 10mA
Number of I/O 274
RAM Size 2.5kB
Propagation Delay 0.5 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 2880
Number of Gates 116000
Number of Logic Blocks (LABs) 360
Output Function REGISTERED
Number of Dedicated Inputs 4
Dimensions
Height Seated (Max) 1.63mm
Length 35mm
Width 35mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
