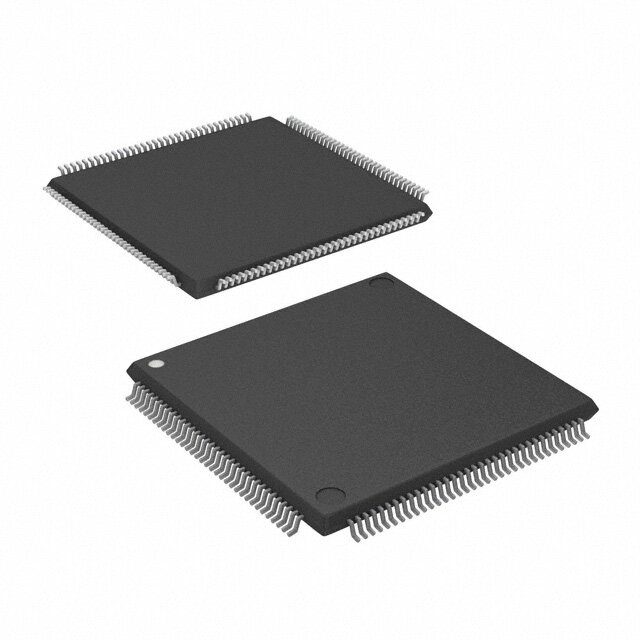

EPF10K50STC144-1X
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 2.5kB 0.3ns
PDF
/
Inventory: 1313
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
Output Function MIXED
Number of Logic Blocks (LABs) 360
Number of Gates 199000
Number of Logic Elements/Cells 2880
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.3 ns
RAM Size 5kB
Number of I/O 102
Operating Supply Current 10mA
Memory Size 2.5kB
Temperature Grade COMMERCIAL
Power Supplies 2.52.5/3.3V
Supply Voltage-Max (Vsup) 2.625V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 102
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A991
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 1998
Physical
Number of Pins 144
Package / Case TQFP
Mount Surface Mount
