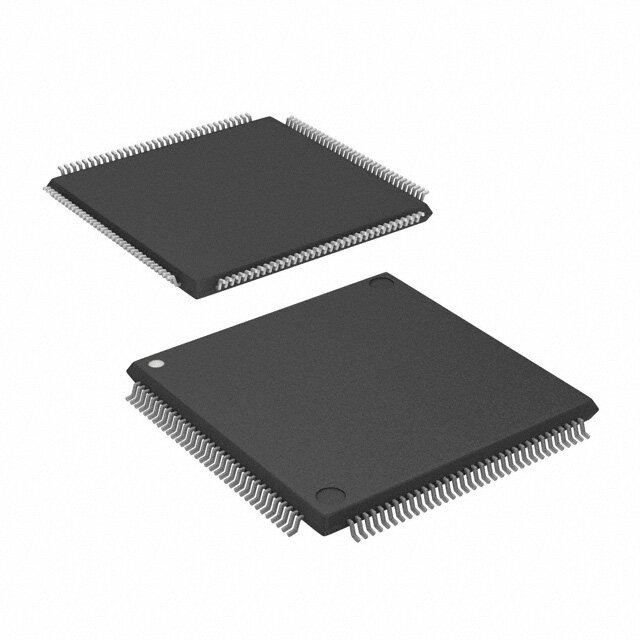

EPF10K50ETI144-2N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS INDUSTRIAL 1998 FPGA 85C 10mA 2.5kB 0.6ns
PDF
/
Buying Options
Total Price: USD $5.36
Unit Price: USD $5.36465
≥1 USD $5.36465
≥10 USD $4.40135
≥100 USD $4.26455
≥500 USD $4.1268
≥1000 USD $3.98905
Inventory: 6009
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 144
Technical
Published 1998
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
ECCN Code 3A991
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Frequency 200MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 144
Number of Outputs 102
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Temperature Grade INDUSTRIAL
Max Supply Voltage 2.7V
Min Supply Voltage 2.3V
Memory Size 2.5kB
Operating Supply Current 10mA
Number of I/O 102
RAM Size 5kB
Propagation Delay 0.6 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 2880
Number of Gates 199000
Number of Logic Blocks (LABs) 360
Speed Grade 2
Output Function MIXED
Dimensions
Height Seated (Max) 1.6mm
Compliance
RoHS Status RoHS Compliant
