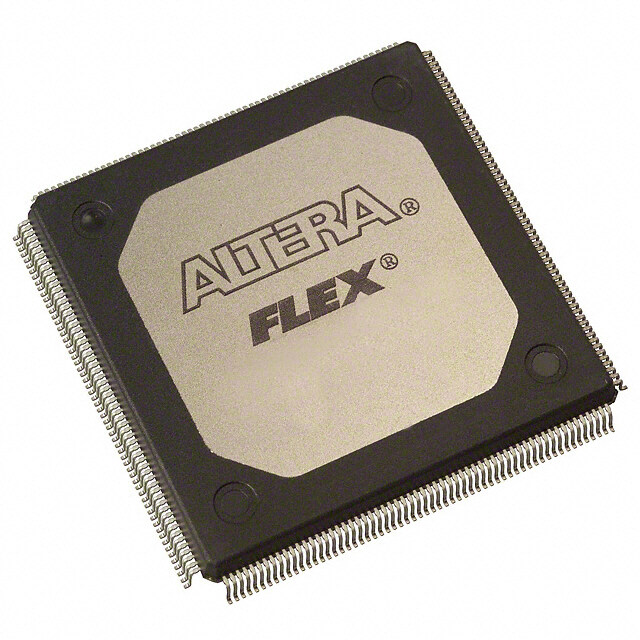

EPF10K30RC240-3N
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 2000 FPGA 70C 10mA 1.5kB 0.6ns
PDF
/
Buying Options
Total Price: USD $1521.38
Unit Price: USD $1521.3775
≥1 USD $1521.3775
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 4.1mm
Technical
Number of Dedicated Inputs 4
Output Function REGISTERED
Speed Grade 3
Number of Logic Blocks (LABs) 216
Number of Gates 69000
Number of Logic Elements/Cells 1728
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.6 ns
RAM Size 1.5kB
Number of I/O 189
Operating Supply Current 10mA
Memory Size 1.5kB
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Number of Outputs 189
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 40
Frequency 125MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2000
Physical
Number of Pins 240
Package / Case QFP
Mount Surface Mount
