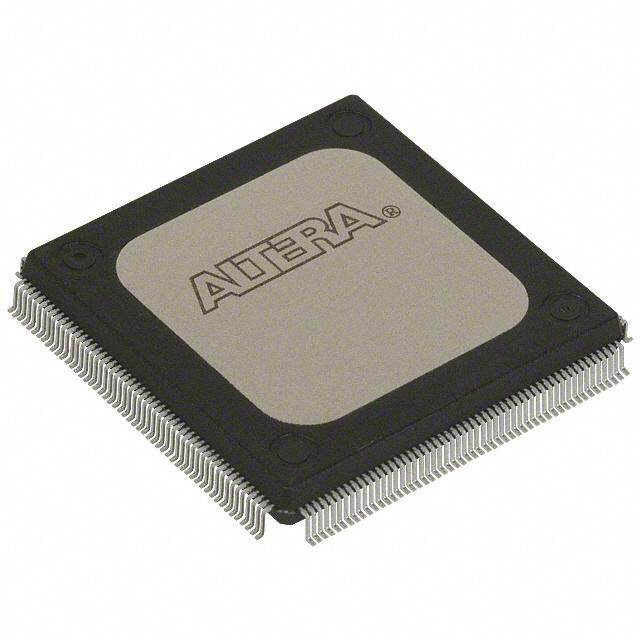

EPF10K30RC208-4N
RoHS
/
Package QFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 1.5kB 0.6ns
PDF
/
Buying Options
Total Price: USD $11.06
Unit Price: USD $11.0599
≥1 USD $11.0599
≥10 USD $9.07535
≥100 USD $8.7913
≥500 USD $8.5082
≥1000 USD $8.22415
≥500 USD $7.3739
Inventory: 924
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case QFP
Number of Pins 208
Technical
Published 2000
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 208
ECCN Code 3A991
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Supply Voltage 5V
Terminal Pitch 0.5mm
Frequency 125MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 208
Number of Outputs 147
Qualification Status Not Qualified
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Memory Size 1.5kB
Operating Supply Current 10mA
Number of I/O 147
RAM Size 1.5kB
Propagation Delay 0.6 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 1728
Number of Gates 69000
Number of Logic Blocks (LABs) 216
Speed Grade 4
Output Function REGISTERED
Number of Dedicated Inputs 4
Dimensions
Length 28mm
Width 28mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
