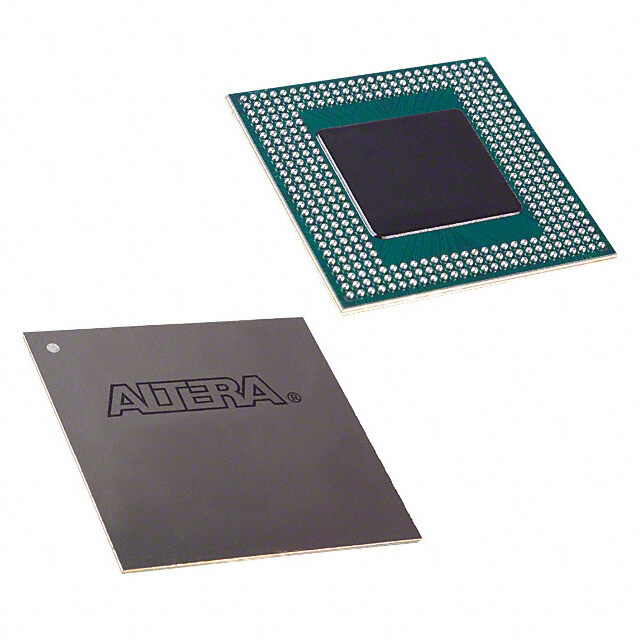

EPF10K200SBC356-2X
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 12kB 0.6ns
PDF
/
Buying Options
Total Price: USD $487.65
Unit Price: USD $487.652
≥1 USD $487.652
Inventory: 41
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 1.63mm
Technical
Output Function MIXED
Number of Logic Blocks (LABs) 1248
Number of Gates 513000
Number of Logic Elements/Cells 9984
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.6 ns
RAM Size 12kB
Number of I/O 274
Operating Supply Current 10mA
Memory Size 12kB
Min Supply Voltage 2.375V
Max Supply Voltage 2.625V
Temperature Grade COMMERCIAL
Power Supplies 2.52.5/3.3V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 274
Pin Count 356
Time@Peak Reflow Temperature-Max (s) 30
Frequency 200MHz
Terminal Pitch 1.27mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code 3A991
Number of Terminations 356
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 1998
Physical
Number of Pins 356
Package / Case BGA
Mount Surface Mount
