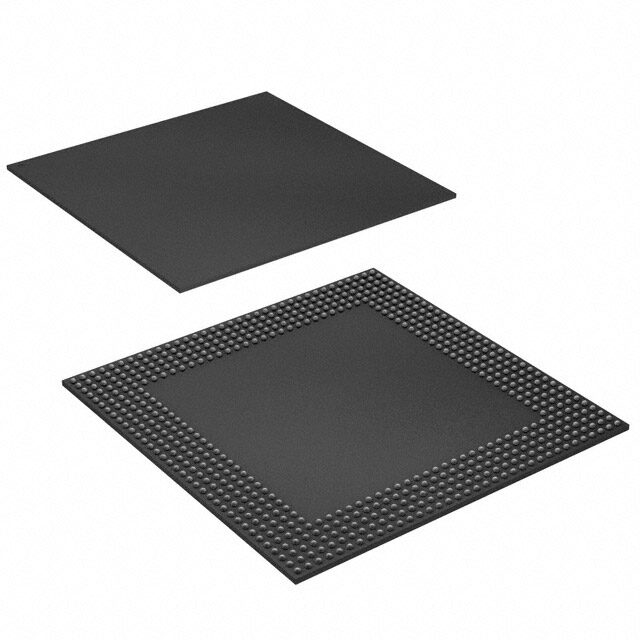

EPF10K200EBC600-3
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 12kB 0.8ns
PDF
/
Buying Options
Total Price: USD $699.9
Unit Price: USD $699.8992
≥1 USD $699.8992
Inventory: 194
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 600
Technical
Published 1998
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 3
Number of Terminations 600
ECCN Code 3A991
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 1.27mm
Frequency 166.67MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 600
Number of Outputs 470
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 2.7V
Min Supply Voltage 2.3V
Memory Size 12kB
Operating Supply Current 10mA
Number of I/O 470
RAM Size 12kB
Propagation Delay 0.8 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 9984
Number of Gates 513000
Number of Logic Blocks (LABs) 1248
Output Function MIXED
Dimensions
Height Seated (Max) 1.93mm
Length 45mm
Width 45mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
