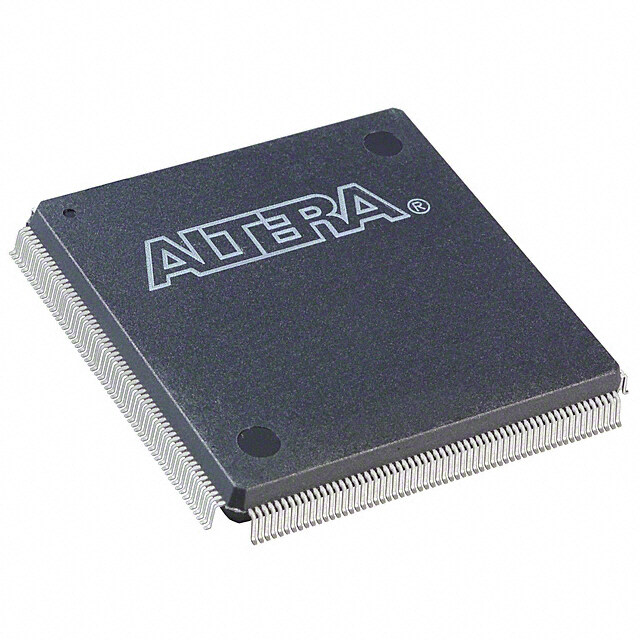

EPF10K130EQC240-1X
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 4kB 0.3ns
PDF
/
Buying Options
Total Price: USD $715.44
Unit Price: USD $715.440987
≥1 USD $715.440987
≥10 USD $674.94433
≥100 USD $636.739931
≥500 USD $600.698053
≥1000 USD $566.696276
Inventory: 1631
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case PQFP
Number of Pins 240
Technical
Published 1998
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 240
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Frequency 333.33MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 240
Number of Outputs 186
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 2.625V
Min Supply Voltage 2.375V
Memory Size 4kB
Operating Supply Current 10mA
Number of I/O 186
RAM Size 8kB
Propagation Delay 0.3 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 6656
Number of Gates 342000
Number of Logic Blocks (LABs) 832
Output Function MIXED
Dimensions
Height Seated (Max) 4.1mm
Length 32mm
Width 32mm
Compliance
RoHS Status RoHS Compliant
