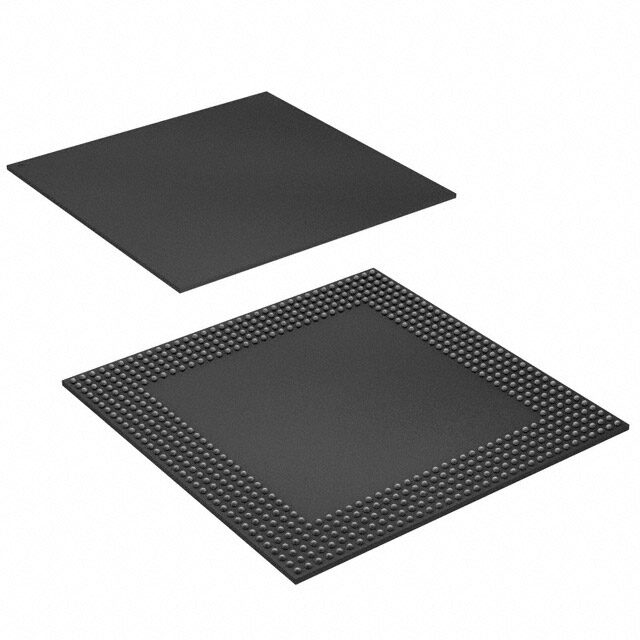

EPF10K130EBC600-3
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 4kB 0.6ns
PDF
/
Inventory: 2169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 600
Technical
Published 1998
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 600
ECCN Code 3A991
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 1.27mm
Frequency 200MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 600
Number of Outputs 424
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 2.625V
Min Supply Voltage 2.375V
Memory Size 4kB
Operating Supply Current 10mA
Number of I/O 424
RAM Size 8kB
Propagation Delay 0.6 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 6656
Number of Gates 342000
Number of Logic Blocks (LABs) 832
Output Function MIXED
Dimensions
Height Seated (Max) 1.93mm
Length 45mm
Width 45mm
Compliance
RoHS Status RoHS Compliant
