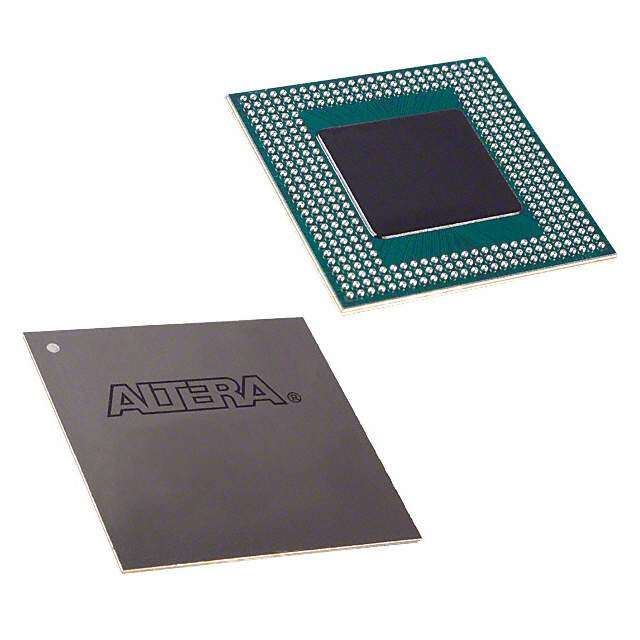

EPF10K130EBC356-1
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead MIXED CMOS COMMERCIAL FPGA 85C 10mA 4kB 0.3ns
PDF
/
Buying Options
Total Price: USD $8.3
Unit Price: USD $8.2954
≥1 USD $8.2954
≥10 USD $6.80675
≥100 USD $6.59395
≥500 USD $6.38115
≥1000 USD $6.16835
Inventory: 861
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 356
Technical
Packaging Bulk
Published 1998
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3
Number of Terminations 356
ECCN Code 3A991
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 85°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 1.27mm
Frequency 333.33MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 356
Number of Outputs 274
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Power Supplies 2.52.5/3.3V
Temperature Grade COMMERCIAL
Max Supply Voltage 2.625V
Min Supply Voltage 2.375V
Memory Size 4kB
Operating Supply Current 10mA
Number of I/O 274
RAM Size 8kB
Propagation Delay 0.3 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 6656
Number of Gates 342000
Number of Logic Blocks (LABs) 832
Output Function MIXED
Dimensions
Height Seated (Max) 1.63mm
Length 35mm
Width 35mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
