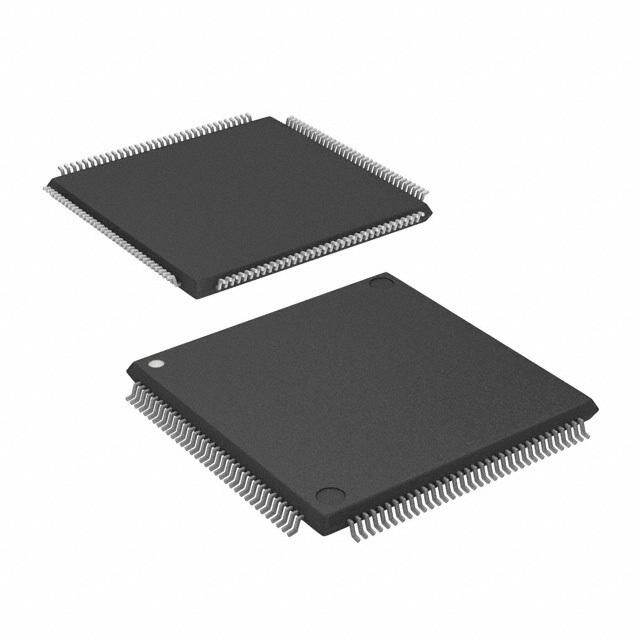

EPF10K10TI144-4
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead REGISTERED CMOS INDUSTRIAL FPGA 85C 10mA 768B 0.6ns
PDF
/
Buying Options
Total Price: USD $37.21
Unit Price: USD $37.2077
≥1 USD $37.2077
≥10 USD $30.5292
≥100 USD $29.5754
≥500 USD $28.6216
≥1000 USD $27.66685
Inventory: 4908
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
Number of Dedicated Inputs 4
Number of Logic Cells 576
Output Function REGISTERED
Speed Grade 4
Number of Logic Blocks (LABs) 72
Number of Gates 10000
Number of Logic Elements/Cells 576
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.6 ns
RAM Size 768B
Number of I/O 102
Operating Supply Current 10mA
Memory Size 768B
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Temperature Grade INDUSTRIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Number of Outputs 102
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Frequency 125MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 220
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 1998
Physical
Number of Pins 144
Package / Case TQFP
Mount Surface Mount
