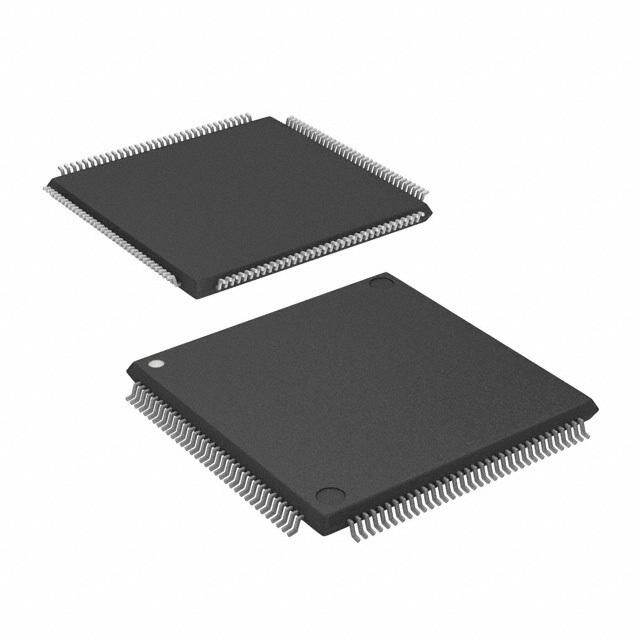

EPF10K10ATC144-2N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 768B 0.6ns
PDF
/
Buying Options
Total Price: USD $36.84
Unit Price: USD $36.8368
≥1 USD $36.8368
Inventory: 124
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.6mm
Technical
Number of Dedicated Inputs 4
Number of Logic Cells 576
Output Function REGISTERED
Speed Grade 2
Number of Logic Blocks (LABs) 72
Number of Gates 31000
Number of Logic Elements/Cells 576
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.6 ns
RAM Size 768B
Number of I/O 102
Operating Supply Current 10mA
Memory Size 768B
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Temperature Grade COMMERCIAL
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Number of Outputs 102
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 40
Frequency 142.86MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2000
Physical
Number of Pins 144
Package / Case TQFP
Mount Surface Mount
