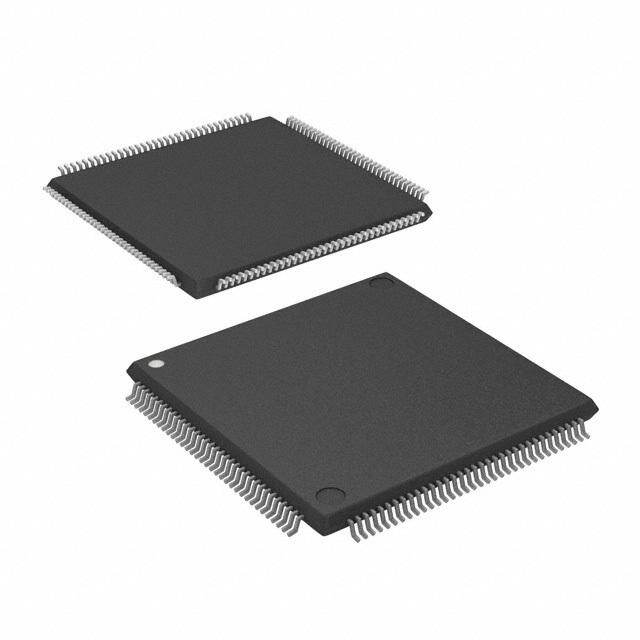

EPF10K10ATC144-1
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead REGISTERED CMOS COMMERCIAL FPGA 70C 10mA 768B 0.5ns
PDF
/
Buying Options
Total Price: USD $52.57
Unit Price: USD $52.57015
≥1 USD $52.57015
≥10 USD $43.13475
≥100 USD $41.7867
≥500 USD $40.43865
≥1000 USD $39.0906
Inventory: 4379
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case TQFP
Number of Pins 144
Technical
Packaging Bulk
Published 2000
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 144
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 166.67MHz
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 144
Number of Outputs 102
Operating Supply Voltage 3.3V
Temperature Grade COMMERCIAL
Number of Circuits 576
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Memory Size 768B
Operating Supply Current 10mA
Number of I/O 102
RAM Size 768B
Propagation Delay 0.5 ns
Programmable Logic Type LOADABLE PLD
Number of Gates 31000
Number of Logic Blocks (LABs) 72
Speed Grade 1
Output Function REGISTERED
Number of Logic Cells 576
Number of Dedicated Inputs 4
Dimensions
Length 20mm
Width 20mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
