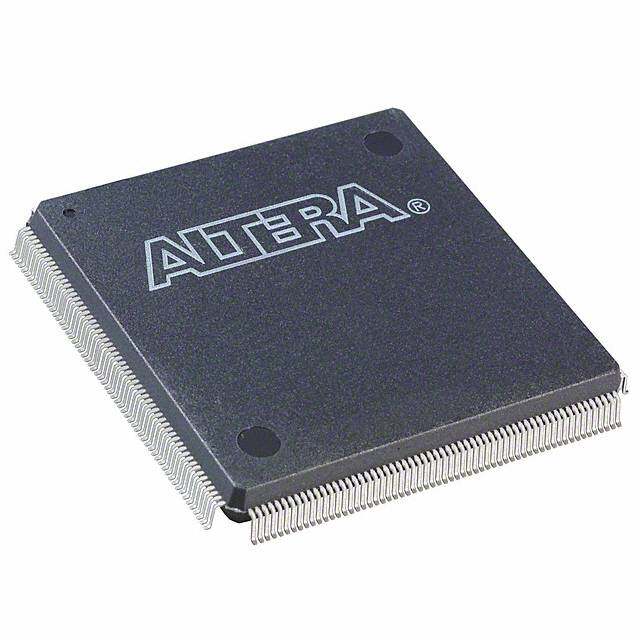

EPF10K100EQC240-2N
RoHS
/
Package PQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free MIXED CMOS COMMERCIAL FPGA 85C 10mA 3kB 0.5ns
PDF
/
Buying Options
Total Price: USD $214
Unit Price: USD $213.9984
≥1 USD $213.9984
Inventory: 168
Minimum: 1
-
+
Technical Details
Physical
Number of Pins 240
Package / Case PQFP
Mount Surface Mount
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 32mm
Length 32mm
Height Seated (Max) 4.1mm
Technical
Output Function MIXED
Number of Logic Blocks (LABs) 624
Number of Gates 257000
Number of Logic Elements/Cells 4992
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.5 ns
RAM Size 6kB
Number of I/O 189
Operating Supply Current 10mA
Memory Size 3kB
Min Supply Voltage 2.375V
Max Supply Voltage 2.625V
Temperature Grade COMMERCIAL
Power Supplies 2.52.5/3.3V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 189
Pin Count 240
Time@Peak Reflow Temperature-Max (s) 40
Frequency 250MHz
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish MATTE TIN (472) OVER COPPER
ECCN Code 3A991
Number of Terminations 240
Moisture Sensitivity Level (MSL) 3
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Published 1998
