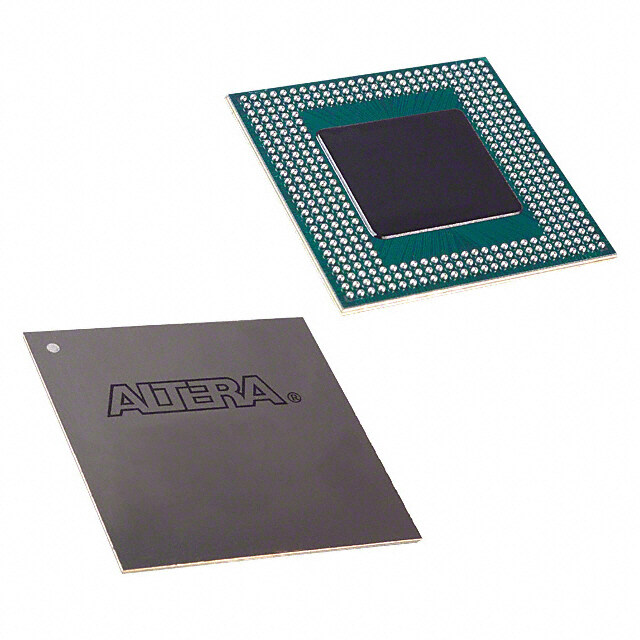

EPF10K100EBC356-2X
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 3kB 0.5ns
PDF
/
Buying Options
Total Price: USD $229.79
Unit Price: USD $229.7944
≥1 USD $229.7944
Inventory: 353
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case BGA
Number of Pins 356
Technical
Published 1998
JESD-609 Code e0
Pbfree Code no
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3
Number of Terminations 356
ECCN Code 3A991
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 2.5V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 356
Number of Outputs 274
Qualification Status Not Qualified
Operating Supply Voltage 2.5V
Supply Voltage-Max (Vsup) 2.625V
Power Supplies 2.52.5/3.3V
Temperature Grade COMMERCIAL
Memory Size 3kB
Operating Supply Current 10mA
Number of I/O 274
RAM Size 6kB
Propagation Delay 0.5 ns
Programmable Logic Type LOADABLE PLD
Number of Logic Elements/Cells 4992
Number of Gates 257000
Number of Logic Blocks (LABs) 624
Output Function MIXED
Dimensions
Height Seated (Max) 1.63mm
Length 35mm
Width 35mm
Compliance
RoHS Status RoHS Compliant
