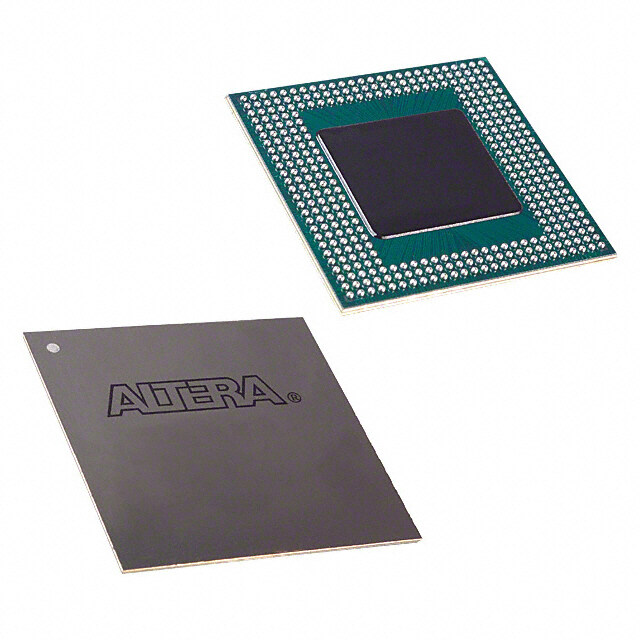

EPF10K100EBC356-1N
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
MIXED CMOS COMMERCIAL 1998 FPGA 70C 10mA 3kB 0.4ns
PDF
/
Buying Options
Total Price: USD $331.53
Unit Price: USD $331.5312
≥1 USD $331.5312
Inventory: 142
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 1.63mm
Technical
Output Function MIXED
Number of Logic Blocks (LABs) 624
Number of Gates 257000
Number of Logic Elements/Cells 4992
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.4 ns
RAM Size 6kB
Number of I/O 274
Operating Supply Current 10mA
Memory Size 3kB
Temperature Grade COMMERCIAL
Power Supplies 2.52.5/3.3V
Supply Voltage-Max (Vsup) 2.625V
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 274
Pin Count 356
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1.27mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish TIN SILVER COPPER
ECCN Code 3A991
Number of Terminations 356
Moisture Sensitivity Level (MSL) 3
Pbfree Code yes
JESD-609 Code e1
Published 1998
Physical
Number of Pins 356
Package / Case BGA
Mount Surface Mount
