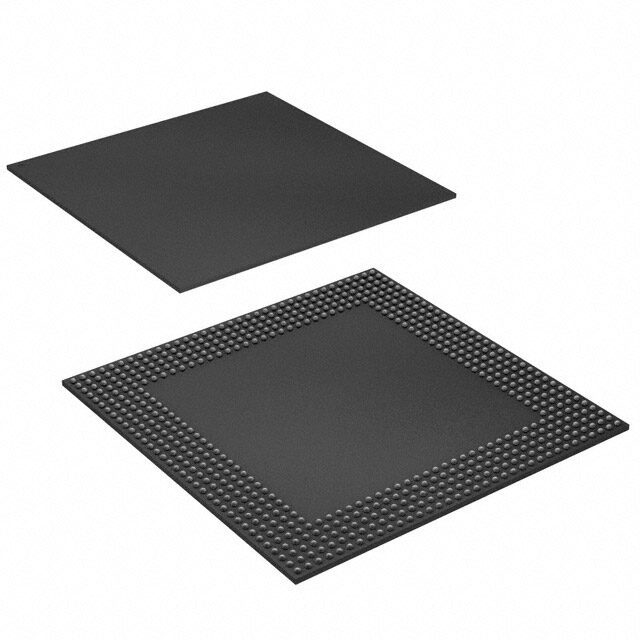

EPF10K100ABC600-1
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
REGISTERED CMOS COMMERCIAL 2000 FPGA 70C 10mA 3kB 0.6ns
PDF
/
Inventory: 6389
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 45mm
Height Seated (Max) 1.93mm
Technical
Number of Dedicated Inputs 4
Output Function REGISTERED
Number of Logic Blocks (LABs) 624
Number of Gates 158000
Number of Logic Elements/Cells 4992
Programmable Logic Type LOADABLE PLD
Propagation Delay 0.6 ns
RAM Size 3kB
Number of I/O 406
Operating Supply Current 10mA
Memory Size 3kB
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Temperature Grade COMMERCIAL
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Number of Outputs 406
Pin Count 600
Time@Peak Reflow Temperature-Max (s) 30
Frequency 200MHz
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A991
Number of Terminations 600
Moisture Sensitivity Level (MSL) 3
Pbfree Code no
JESD-609 Code e0
Published 2000
Physical
Number of Pins 600
Package / Case BGA
Mount Surface Mount
