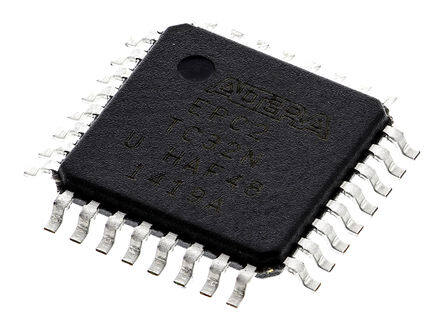

EPC2TC32N
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Lead Free CMOS COMMERCIAL 2010 FPGA 70C 50muA 256kB 16.7MHz
PDF
/
Buying Options
Total Price: USD $34.9
Unit Price: USD $34.903
≥1 USD $34.903
≥10 USD $28.63775
≥100 USD $27.74285
≥500 USD $26.84795
≥1000 USD $25.95305
≥3000 USD $23.26835
Inventory: 6009
Minimum: 1
-
+
Technical Details
Technical
Terminal Pitch 0.8mm
Frequency 16.7MHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 32
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Interface Serial
Max Supply Voltage 5.25V
Min Supply Voltage 3V
Memory Size 256kB
Operating Supply Current 50μA
Memory Type FLASH
Supply Current-Max 0.05mA
Frequency (Max) 10MHz
Organization 1695680X1
Standby Current-Max 0.0001A
Memory Density 1695680 bit
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Additional Feature IT CAN ALSO OPERATE AT 5V SUPPLY
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2010
Packaging Bulk
Dimensions
Height 1mm
Length 7mm
Width 7mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Weight 72.801575mg
Number of Pins 32
Package / Case TQFP
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
