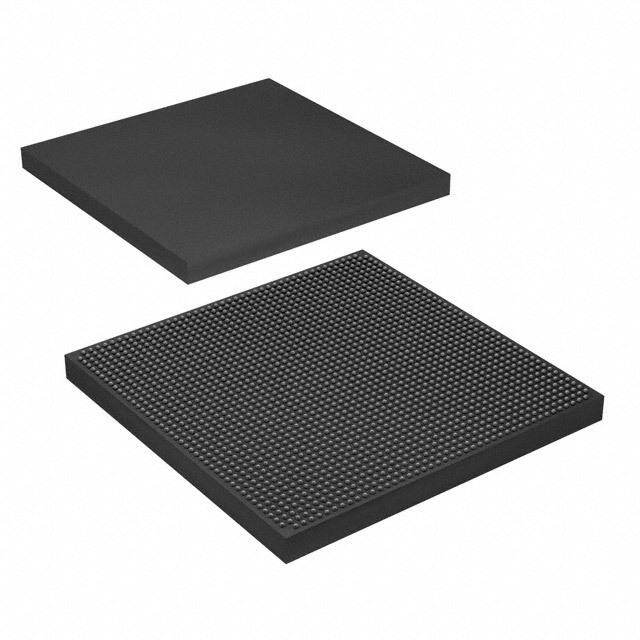

EP4SGX530NF45I4N
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS 2008 RoHS Compliant BALL FPGA 100C 3.3MB 600MHz 900mV
PDF
/
Inventory: 988
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 45mm
Height Seated (Max) 3.8mm
Technical
Number of Transceivers 48
Number of Logic Blocks (LABs) 21248
Number of Logic Elements/Cells 531200
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Data Rate 600 Mbps
Frequency (Max) 600MHz
RAM Size 3.3MB
Number of I/O 920
Memory Size 3.3MB
Power Supplies 0.91.2/31.52.5V
Supply Voltage-Max (Vsup) 0.93V
Operating Supply Voltage 900mV
Qualification Status Not Qualified
Number of Outputs 920
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1mm
Supply Voltage 0.9V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 4
Pbfree Code yes
JESD-609 Code e1
Published 2008
Physical
Number of Pins 1932
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
