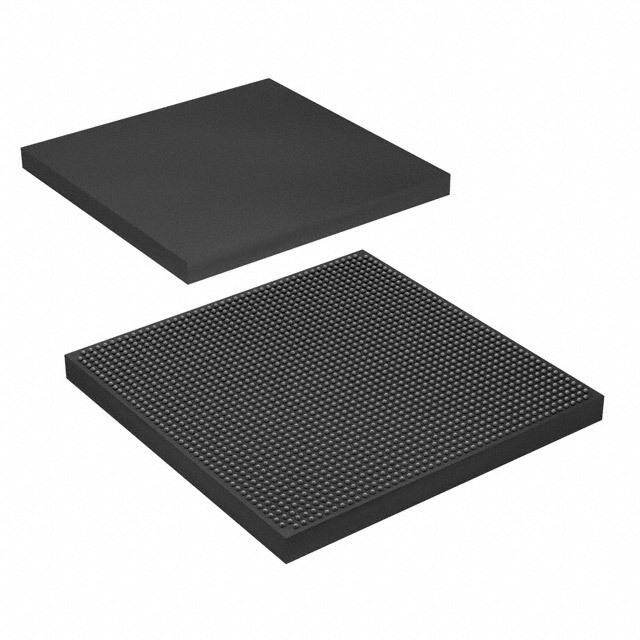

EP4SGX530NF45I4
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS 2008 Non-RoHS Compliant BALL FPGA 100C 3.3MB 600MHz 900mV
PDF
/
Inventory: 950
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Package / Case FBGA
Number of Pins 1932
Technical
Published 2008
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 4
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 0.9V
Terminal Pitch 1mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 920
Qualification Status Not Qualified
Operating Supply Voltage 900mV
Supply Voltage-Max (Vsup) 0.93V
Power Supplies 0.91.2/31.52.5V
Memory Size 3.3MB
Number of I/O 920
RAM Size 3.3MB
Frequency (Max) 600MHz
Data Rate 600 Mbps
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 531200
Number of Logic Blocks (LABs) 21248
Number of Transceivers 48
Dimensions
Height Seated (Max) 3.8mm
Length 45mm
Width 45mm
Compliance
RoHS Status Non-RoHS Compliant
