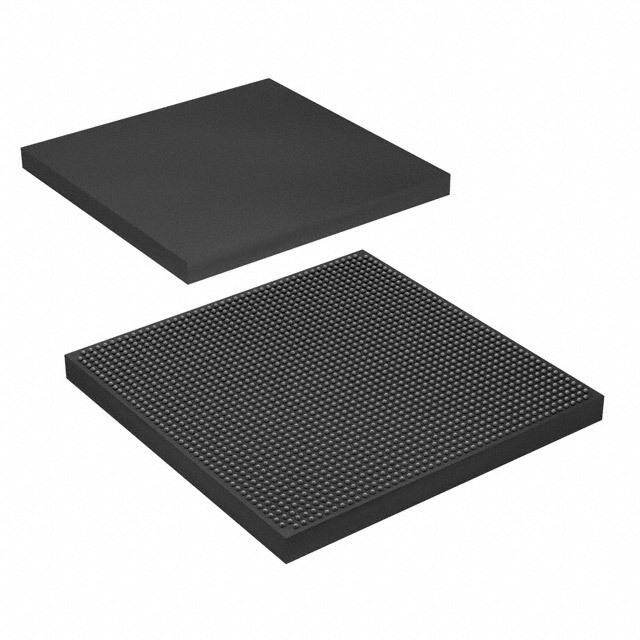

EP4SGX530NF45C3 image
Favorite
EP4SGX530NF45C3 image
Favorite

EP4SGX530NF45C3

Altera
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description CMOS OTHER 2008 Non-RoHS Compliant FPGA 85C 3.3MB 600MHz 930mV
PDF
/
Inventory: 7348
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Width 45mm
Length 45mm
Height Seated (Max) 3.8mm

Technical

Number of Transceivers 48
Number of Logic Blocks (LABs) 21248
Number of Logic Elements/Cells 531200
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Data Rate 600 Mbps
Frequency (Max) 600MHz
RAM Size 3.3MB
Number of I/O 920
Memory Size 3.3MB
Min Supply Voltage 870mV
Max Supply Voltage 930mV
Temperature Grade OTHER
Power Supplies 0.91.2/31.52.5V
Operating Supply Voltage 900mV
Qualification Status Not Qualified
Number of Outputs 920
Reach Compliance Code not_compliant
Terminal Pitch 1mm
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 4
JESD-609 Code e0
Published 2008

Physical

Number of Pins 1932
Package / Case FBGA
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
