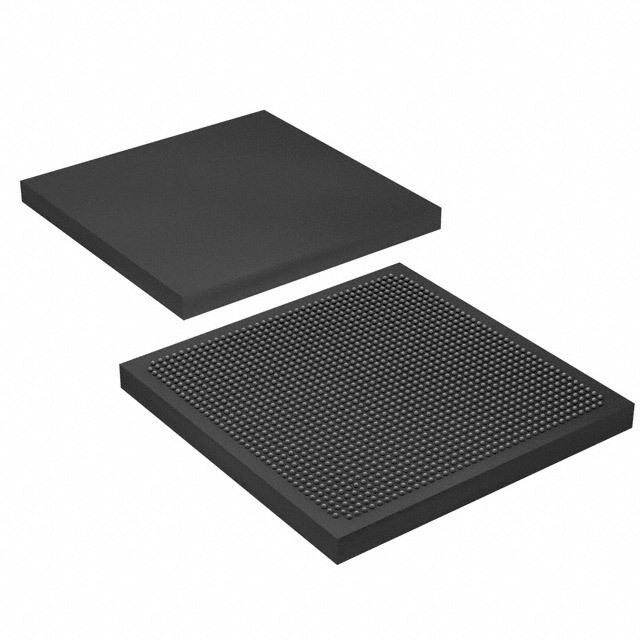

EP4SGX530KH40C4NES
RoHS
/
Package FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
OTHER 2008 RoHS Compliant BALL FPGA 85C 3.3MB 717MHz 0.87V
PDF
/
Inventory: 6479
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 42.5mm
Length 42.5mm
Height Seated (Max) 3.8mm
Technical
Number of Logic Blocks (LABs) 21248
Number of Logic Elements/Cells 531200
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 717MHz
RAM Size 3.3MB
Number of I/O 744
Supply Voltage-Min (Vsup) 0.87V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 0.93V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B
Pin Count 1517
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1mm
Supply Voltage 0.9V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN SILVER COPPER
ECCN Code 3A001.A.7.A
Number of Terminations 1517
Pbfree Code yes
JESD-609 Code e1
Published 2008
Physical
Package / Case FCBGA
Mount Surface Mount
