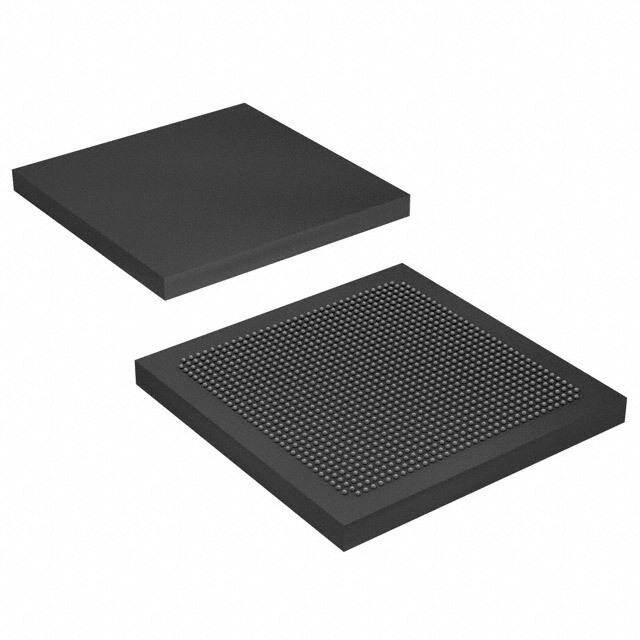

EP4SGX530HH35C2NES
RoHS
/
Package FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
FCBGA TIN SILVER COPPER Surface Mount FIELD PROGRAMMABLE GATE ARRAY field programmable gate array 3.8mm 0.87V 800MHz 3.3MB
PDF
/
Buying Options
Total Price: USD $786.83
Unit Price: USD $786.83461
≥1 USD $786.83461
≥10 USD $742.2968
≥100 USD $700.28
≥500 USD $660.64151
≥1000 USD $623.24671
≥3000 USD $587.96859
Inventory: 7689
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 42.5mm
Length 42.5mm
Height Seated (Max) 3.8mm
Technical
Number of Logic Blocks (LABs) 21248
Number of Logic Elements/Cells 531200
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 800MHz
RAM Size 3.3MB
Number of I/O 564
Supply Voltage-Min (Vsup) 0.87V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 0.93V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B
Pin Count 1152
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1mm
Supply Voltage 0.9V
Peak Reflow Temperature (Cel) 245
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish TIN SILVER COPPER
ECCN Code 3A001.A.7.A
Number of Terminations 1152
Pbfree Code yes
JESD-609 Code e1
Published 2008
Physical
Package / Case FCBGA
Mount Surface Mount
