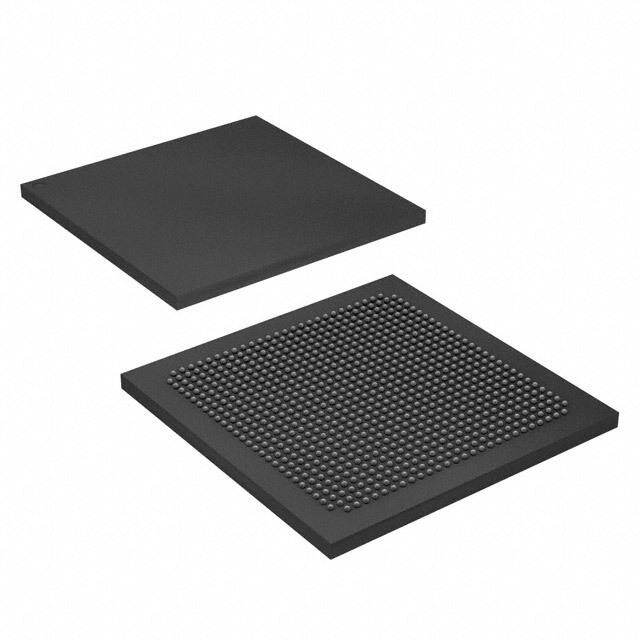

EP4SGX360FH29C4
RoHS
/
Package BGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS OTHER 2008 Non-RoHS Compliant FPGA 85C 2.8MB 600MHz 900mV
PDF
/
Inventory: 5291
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 33mm
Length 33mm
Height Seated (Max) 3.4mm
Technical
Number of Transceivers 16
Number of Logic Blocks (LABs) 14144
Number of Logic Elements/Cells 353600
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Data Rate 600 Mbps
Frequency (Max) 600MHz
RAM Size 2.8MB
Number of I/O 289
Memory Size 2.8MB
Temperature Grade OTHER
Power Supplies 0.91.2/31.52.5V
Supply Voltage-Max (Vsup) 0.93V
Operating Supply Voltage 900mV
Qualification Status Not Qualified
Number of Outputs 289
Pin Count 780
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 1mm
Supply Voltage 0.9V
Peak Reflow Temperature (Cel) 220
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Number of Terminations 780
Moisture Sensitivity Level (MSL) 4
Pbfree Code no
JESD-609 Code e0
Published 2008
Physical
Number of Pins 780
Package / Case BGA
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
