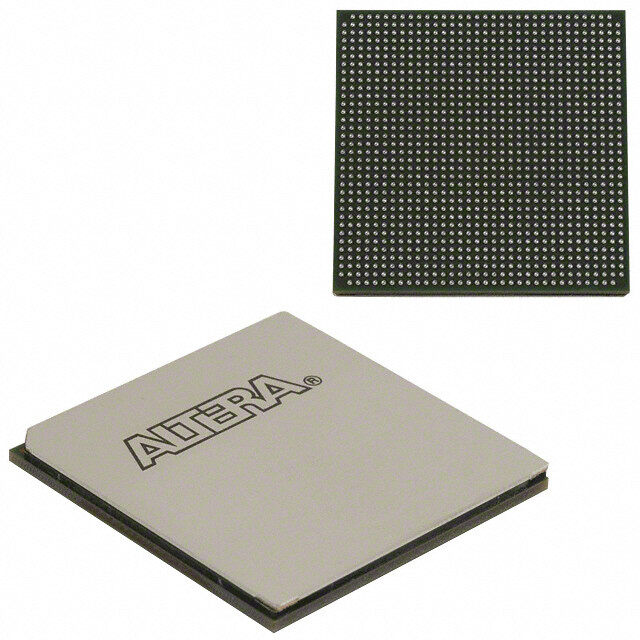

EP4SGX230HF35I4
RoHS
/
Package FBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS 2008 RoHS Compliant BALL FPGA 100C 2.1MB 600MHz 930mV
PDF
/
Inventory: 970
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 4
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Lead (Sn63Pb37)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 0.9V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 30
Number of Outputs 564
Qualification Status Not Qualified
Operating Supply Voltage 900mV
Power Supplies 0.91.2/31.52.5V
Max Supply Voltage 930mV
Min Supply Voltage 870mV
Memory Size 2.1MB
Number of I/O 564
RAM Size 2.1MB
Frequency (Max) 600MHz
Data Rate 600 Mbps
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 228000
Number of Logic Blocks (LABs) 9120
Number of Transceivers 24
Published 2008
Dimensions
Height Seated (Max) 3.6mm
Length 35mm
Width 35mm
Physical
Number of Pins 1152
Package / Case FBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
Compliance
RoHS Status RoHS Compliant
